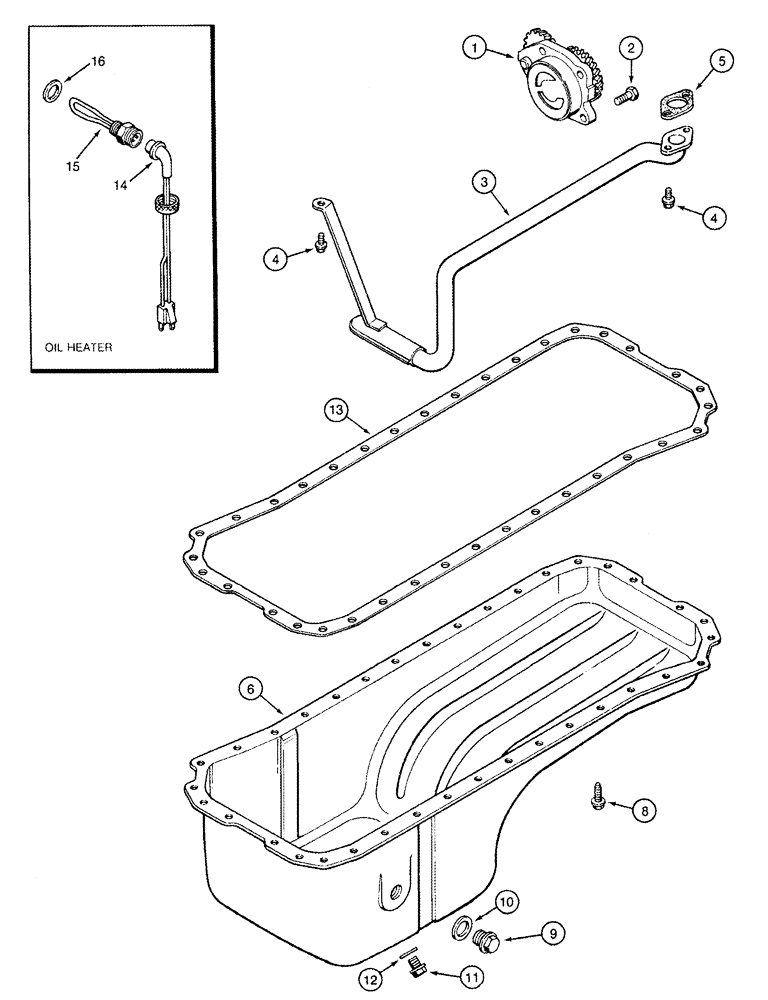

Запчасти Case IH 2344 (02-18) - OIL PUMP, PAN - HEATER (01) - ENGINE

1

J941742

PUMP, ENGINE OIL

Replaces J930337

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only; Replaces JR930337

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only; Replaces JC930337

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J934942

TUBE,1" OD

Replaces J909373

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Replaces J907860

2шт.

5

J931349

GASKET

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

9

J924148

PLUG,M22 x 1.5

M22

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

11

J924147

PLUG,M18 x 1.5

M18

1шт.

12

J920773

SEALING WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting, Order A77979

1шт.

A77676

GASKET KIT

Inc. 5, 12, 13, No Longer Used, Order A77979

1шт.

A77979

GASKET KIT

Inc. 5, 12, 16, Engine Oil Heater

1шт.

A77490

KIT

Engine Oil Heater, Inc. 14, 15, Also Order J902425

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

NSS

NOT SOLD SEPARAT

Element

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
