Запчасти Case IH 2344 (09E-10) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER

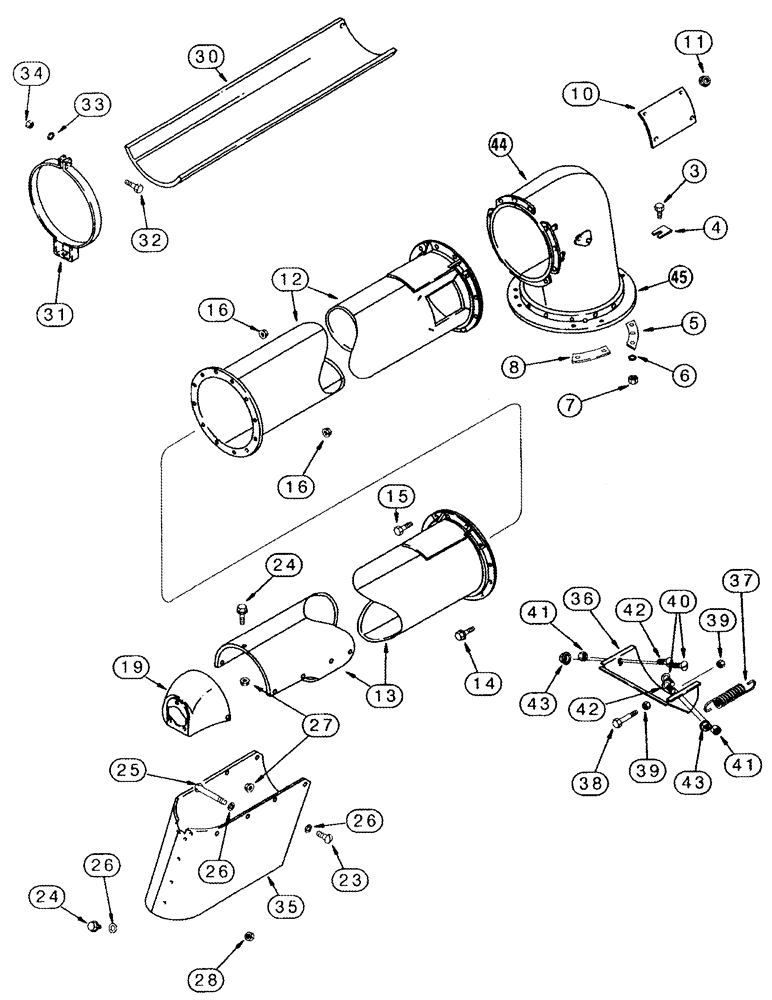

Схема запчастей Case IH 2344 - (09E-10) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER
5
35
31
3
7
38
24
37
32
41
16
26
23
30
40
43
24
44
16
13
19
4
42
6
39
27
11
43
15
10
8
39
36
28
14
41
42
26
25
12
33
45
34
26

Артикул

Название

Примечание

Количество

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

0,036 in

1шт.

5

186657C3

SUPPORT

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

1шт.

10

178158C1

PLATE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1317738C1

TUBE,2285 mm Length

89.96 in, Front, Plain

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

89.96 in, Front, Perforated

1шт.

13

1317783C5

TUBE,2084.01 mm Length

82.47 in, Rear

1шт.

13

1317899C4

TUBE,2998 mm Length

118.031 in, Rear

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

18шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-6шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

16-18шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11-13шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

Perforated

1шт.

31

178166C1

CLAMP

4шт.

32

185856C1

ADJUSTMENT SCREW

5/16 x 2

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT Down

1шт.

36

115867A1

DOOR

1шт.

37

1338869C1

SPRING

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 x 1; 8

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

44

248308A1

ELBOW

Inc. 45 - 47, Serial Range: -JJC0174449

1шт.

44

248308A2

ELBOW

Inc. 45 - 47, Start Serial: JJC0174450

1шт.

45

NSS

NOT SOLD SEPARAT

Ring

1шт.

46

49-516

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1, Not Illustrated

20шт.

47

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

1/4 x 3/4, Not Illustrated

3шт.

Выбрано товаров: 41
