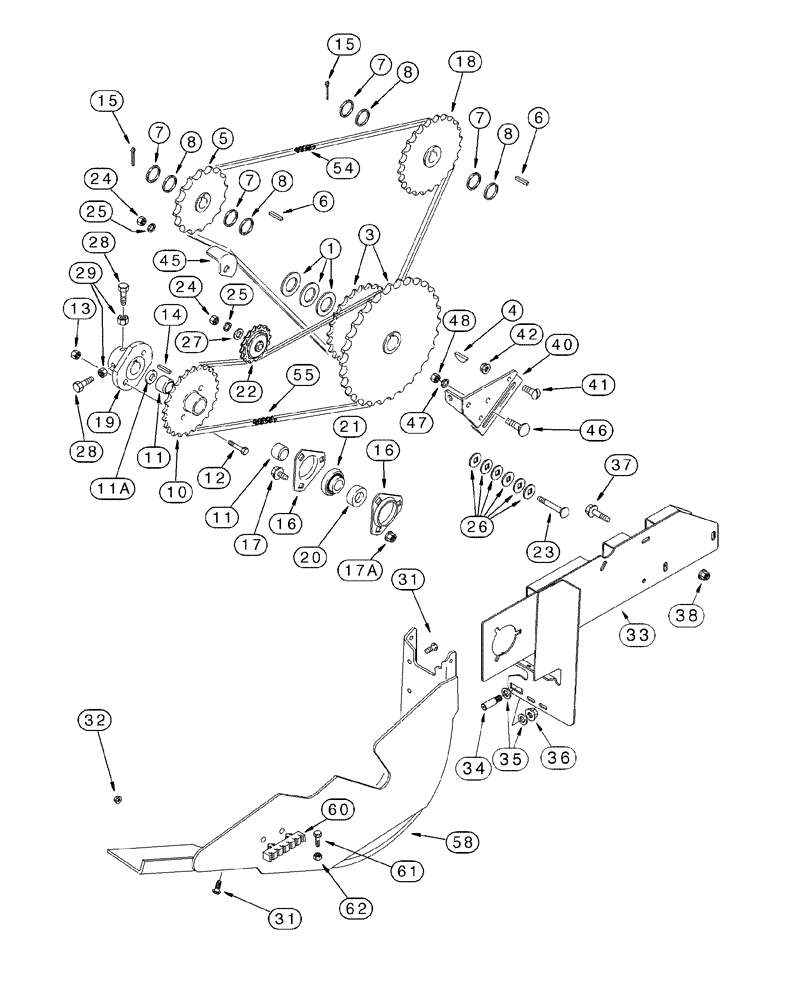

Запчасти Case IH 2344 (09E-07) - UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

1

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1-13/32 x 2-1/4 x 1/8

3шт.

1

1327731C1

THRUST WASHER

1-13/32 x 2-1/4 x 1/8

1шт.

3

1347402C1

SPROCKET

33T, 57T, Driven

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

43T

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1-1/32 x 1-1/2 x 7/64

8шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1-1/32 x 1-1/2 x 1/16

4шт.

10

1347360C1

SPROCKET

Drive, Inc. 11

1шт.

11

1347384C1

BEARING,31.77mm ID x 19.05mm L

1шт.

11a

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

2шт.

12

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16 x 1-1/4

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

16

180955C1

FLANGED BEARING,0.375"

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

17a

231-5146

FLANGE NUT,3/8"-16

3шт.

18

192925C1

SPROCKET

37T

1шт.

19

1347399C1

HUB

1шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

1шт.

21

455104R11

COLLAR

1шт.

22

565442R91

SPROCKET

17T

1шт.

23

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

1/2 x 2

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

Square Hole, 17/32 x 1 x 1/16

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

28

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

139706A3

SUPPORT

Outer

1шт.

34

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

35

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

2шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

40

175595A1

SUPPORT

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

45

936878R1

BLOCK

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

48

425-108

NUT,1/2" - 13, Gr 5

1шт.

54

113200A1

CHAIN

Order 1790D (149), 1301D (1)

1шт.

55

1303207C91

CHAIN

Order 1791D (127), 1310D (2), 1315D (1) & 1309D (1)

1шт.

58

140181A3

SHIELD

1шт.

60

3102155R1

HOLDER

1шт.

61

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16 x 1-1/4

6шт.

62

231-1445

NUT,5/16"-18, GB

6шт.
