Запчасти Case IH 2344 (09D-16) - ELEVATOR - JACKSHAFT, DRIVE (16) - GRAIN ELEVATORS & AUGERS

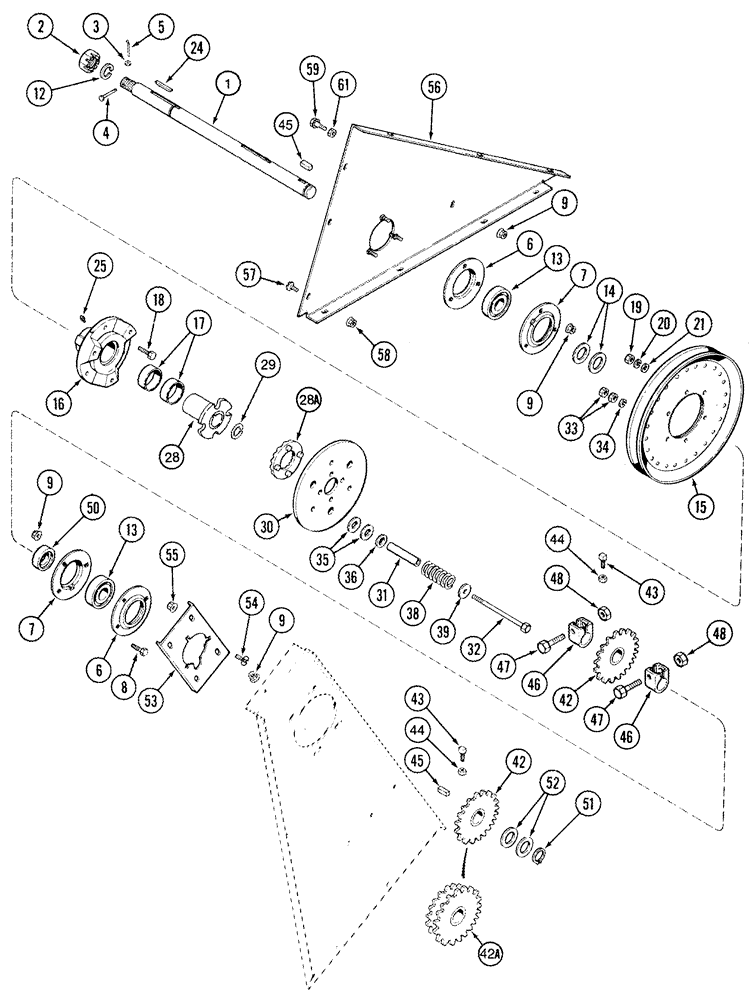

Схема запчастей Case IH 2344 - (09D-16) - ELEVATOR - JACKSHAFT, DRIVE (16) - GRAIN ELEVATORS & AUGERS
19
3
34
5
43
28a
15
7
30
39
18
46
45
13
33
48
35
8
9
43
42
21
7
4
6
48
57
56
29
2
46
36
51
52
14
44
38
16
47
31
59
17
9
32
50
61
6
42
47
1
12
9
13
45
24
54
28
44
9
53
55
25
20
58

Артикул

Название

Примечание

Количество

1

195185A1

SHAFT

1шт.

2

425-1316

NUT,1"-14, G5

1 NS

1шт.

3

495-31022

WASHER,#10

1шт.

4

427-3175

CLEVIS PIN,4.78mm OD x 44.45mm L

3/16 x 1-3/4

1шт.

5

432-48

COTTER PIN,1/16" x 1/2"

1шт.

6

473092R1

FLANGED BEARING

2шт.

7

939462R91

FLANGE

2шт.

9

231-5146

FLANGE NUT,3/8"-16

7шт.

12

492-11100

LOCK WASHER,1"

1"

1шт.

13

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

2шт.

14

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

1-9/32 x 1-7/8 x 3/16

1шт.

15

183325C1

PULLEY

13 in OD

1шт.

16

183210C91

HUB

Inc. 17

1шт.

17

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

19

231-4116

NUT,3/8"-16, GB

3/8

3шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

24

586879R1

KEY

5/16 x 2

1шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

28

198279A1

HUB

1шт.

28a

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

1шт.

29

1319235C1

RING

1шт.

30

194835C2

RETAINER

1шт.

31

186916C2

BUSHING,11.18mm ID x 19.05mm OD x 87.38mm L

3шт.

32

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3/8 x 6-1/2

3шт.

33

425-106

NUT,3/8"-16, Cl 5

6шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

495-11081

WASHER,3/4", SAE

1шт.

36

495-81037

WASHER,25/32" x 1 1/4" x .060"

1шт.

38

300549A1

SPRING

3шт.

39

495-81143

WASHER,13/32" x 1 1/2" x .120"

3шт.

42

192139C2

SPROCKET

25T, If Used

1-2шт.

42a

182945A1

SPROCKET

25T, 30T, If Used

1шт.

43

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

4шт.

44

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

45

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

46

225265R1

CLAMP

2шт.

47

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

48

231-4118

LOCK NUT,1/2"-13, GB

1/2

2шт.

50

455104R11

COLLAR

1шт.

51

100-16125

SNAP RING,#125, Ext

1шт.

52

495-81203

WASHER,1 9/32" x 2" x .120"

1-9/32 x 2 x 1/8

1шт.

53

192138C2

BRACKET

1шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

55

231-5146

FLANGE NUT,3/8"-16

4шт.

56

1317435C2

SUPPORT

1шт.

57

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

58

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

59

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

61

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3шт.

Выбрано товаров: 52
