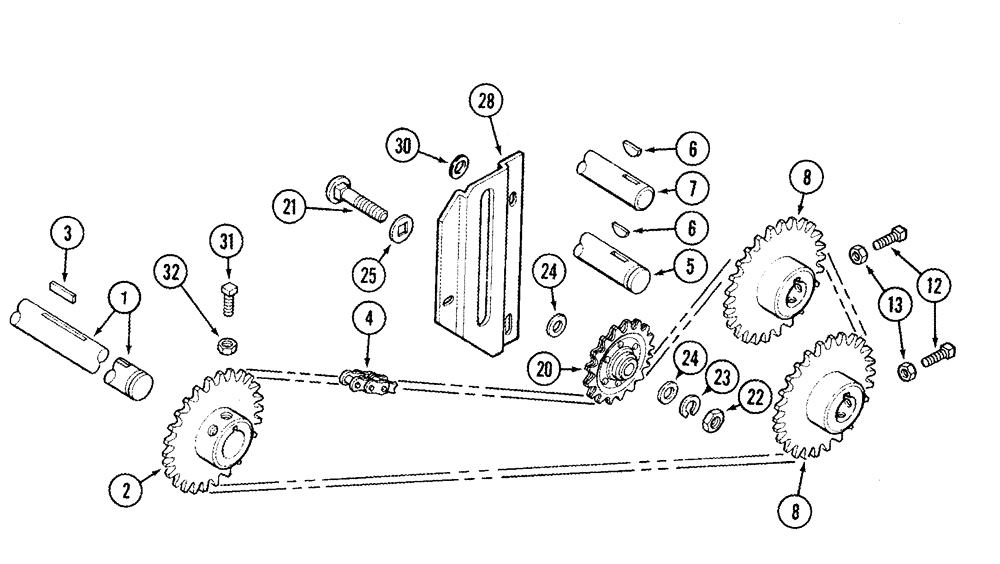

Запчасти Case IH 2344 (09D-15) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

195185A1

SHAFT

1шт.

2

192139C2

SPROCKET

25T

1шт.

3

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

4

1327724C92

CHAIN (AG)

1шт.

5

193225C1

AUGER

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

1шт.

8

1345472C1

SPROCKET

27T

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

20

631905R91

SPROCKET

17T

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2; 2

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

4шт.

25

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

Square Hole, 21/32 x 1-1/4 x 3/32

2шт.

28

1302069C2

SUPPORT

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

11/32 x 3/4 x 3/16

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.
