Запчасти Case IH 2344 (09D-14) - TAILINGS - ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

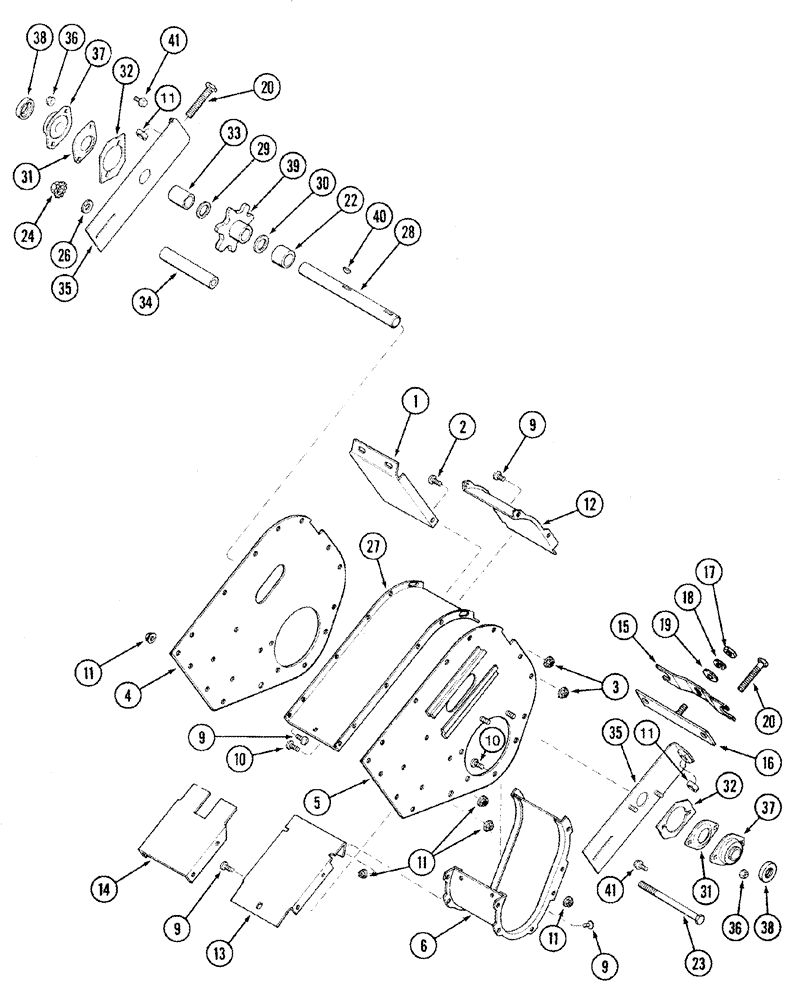

Схема запчастей Case IH 2344 - (09D-14) - TAILINGS - ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
9
28
9
1
24
18
22
2
11
37
38
3
17
4
14
11
12
36
10
5
34
23
30
39
11
35
36
33
11
37
32
41
6
38
19
35
29
27
20
13
40
9
16
15
26
32
41
11
31
31
10
20
9

Артикул

Название

Примечание

Количество

1

195201C1

SUPPORT

Upper

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

181366C1

SIDE PLATE

Left Hand

1шт.

5

181367C1

SIDE PLATE

Right Hand

1шт.

6

188119C1

TROUGH

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

24шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

36шт.

12

191776C1

COVER

1шт.

13

191782C1

SUPPORT

Lower

1шт.

14

181327C1

BOTTOM

Lower

1шт.

15

181376C1

CLAMP

1шт.

16

181375C1

SUPPORT

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

1шт.

20

667486R1

BOLT

1/2 x 3-1/2

2шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

RH

1шт.

23

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

5/16 x 7; 2

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

5шт.

27

191783C1

TOP COVER

Cover

1шт.

28

191785C1

SHAFT

1шт.

29

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

1-1/32 x 1-1/4 x 3/64

1шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

1-1/32 x 1-3/4 x 1/16

2шт.

31

50591

FLANGE,52mm

2шт.

32

1979640C2

LARGE PLATE

PLATE, LARGE

2шт.

33

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

1шт.

34

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

LH

2шт.

35

181364C1

SUPPORT

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

214366C91

BALL BEARING,25.40mm ID x 52mm OD

2шт.

38

455102R21

COLLAR

2шт.

39

168683C1

SPROCKET

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

Выбрано товаров: 37
