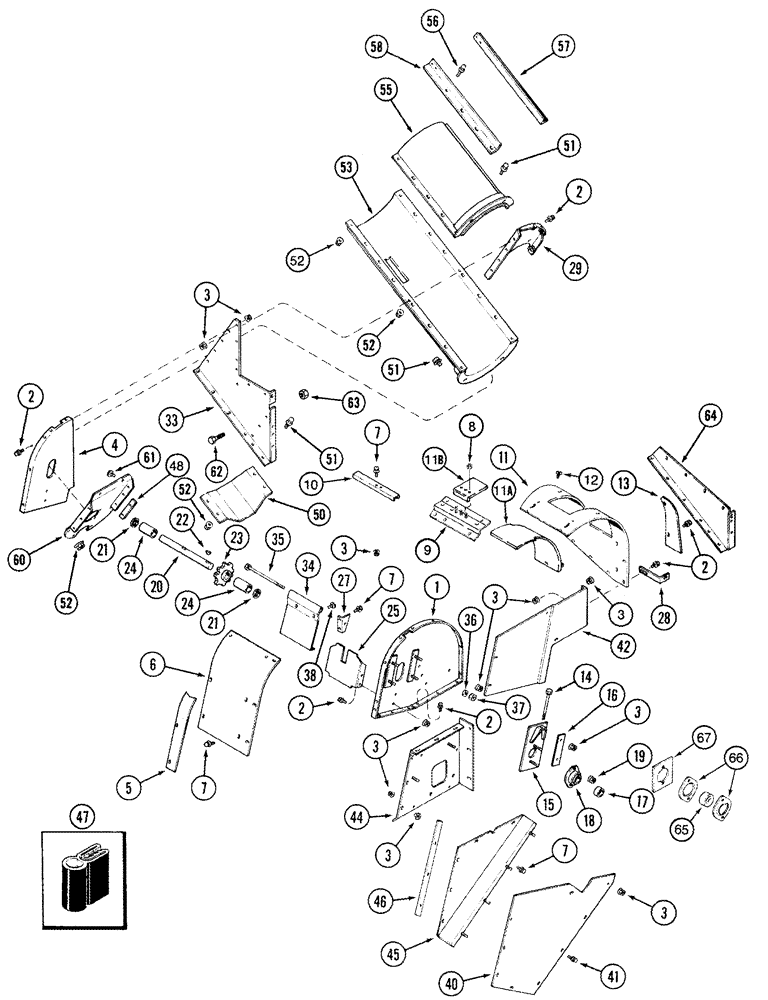

Запчасти Case IH 2344 (09D-06) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

1

1319908C1

SIDE PLATE

Right Hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

1319901C1

SIDE PLATE

Left Hand

1шт.

5

1321232C1

PLATE

Rear

1шт.

6

1319942C1

COVER

Rear

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

8

231-4116

NUT,3/8"-16, GB

3/8

3шт.

9

198581A2

STIFFENER

1шт.

10

1317474C2

CHANNEL

1шт.

11

198603A2

COVER

1шт.

11

238647A1

COVER

1шт.

11a

229609A2

COWL

1шт.

11b

197877A1

SUPPORT

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

13

1321231C1

PLATE

Front

1шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

1/2 x 5-1/2

2шт.

15

1317251C3

SUPPORT

2шт.

16

1310040C1

BAR

4шт.

17

557995R11

COLLAR

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

If Used, Optional With 65 - 67 (9D-02, 9D-05, 9D-07)

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317429C1

SHAFT

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

23

1317192C1

SPROCKET

1шт.

24

1317193C2

SPACER

31 x 38 x 52 mm

2шт.

25

1317222C1

PLATE

1шт.

27

1321553C1

BRACKET

1шт.

28

1321832C2

SUPPORT

1шт.

29

189449A1

SUPPORT

Left Hand Front, Inc. Decal, See Figure(s) 09H-21, REF 7, Replaces 189456A1

1шт.

33

1321551C2

SUPPORT

1шт.

34

1319952C1

PLATE

1шт.

35

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

5/16 x 7; 2

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

40

1321154C1

PANEL

Right Hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

1шт.

44

1321060C1

SUPPORT

1шт.

45

1321496C1

SUPPORT

Left Hand

1шт.

46

1321155C1

SPACER

1шт.

47

1321262C1

SEAL

2шт.

48

1321554C1

PLATE

1шт.

50

1321556C1

COVER

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

53

199006A2

TUBE,887 mm Length

Lower

1шт.

55

1321560C3

TUBE

Upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

57

1321568C3

ANGLE

Front

1шт.

58

1321569C3

ANGLE

Rear

1шт.

60

1979134C1

SUPPORT

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

63

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

64

1321552C2

SUPPORT

1шт.

65

156011C92

BALL BEARING

If Used, Optional With 18 (09D-06)

2шт.

66

581469R1

FLANGE,Bearing

Used With 65 & 67

4шт.

67

1979642C1

SPACER

Used With 65 & 66

2шт.

68

1984383C2

WEAR STRIP

Not Illustrated

1шт.

69

275319A1

NUT

Not Illustrated

2шт.
