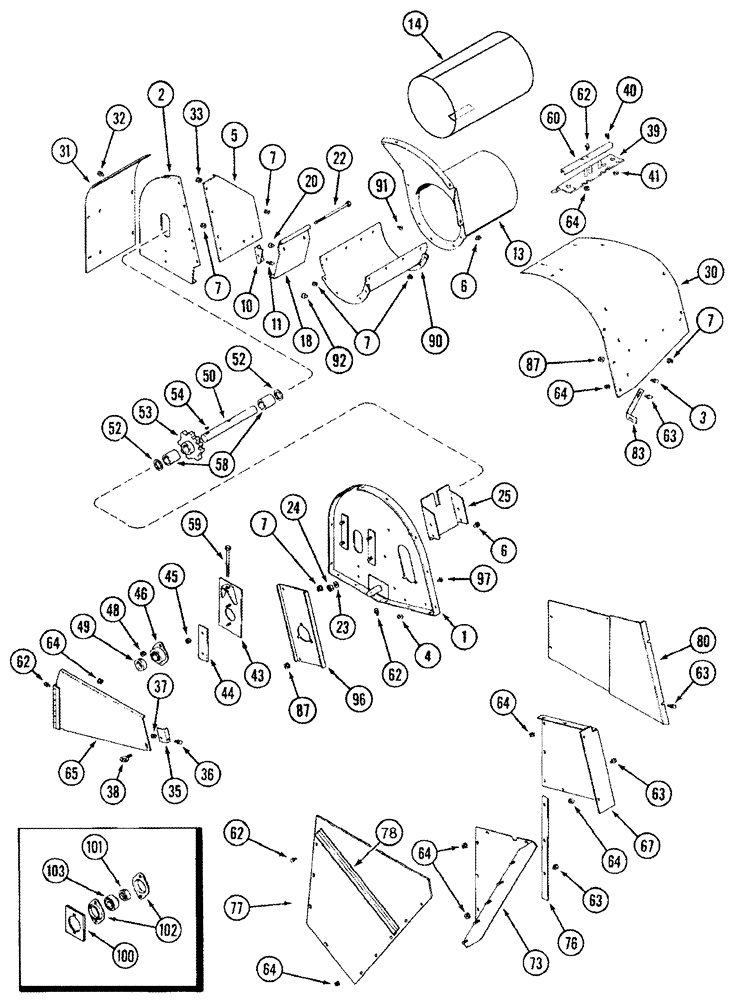

Запчасти Case IH 2344 (09D-05) - GRAIN ELEVATOR HEAD, HORIZONTAL - BSN JJC0174359 (16) - GRAIN ELEVATORS & AUGERS

1

1321126C1

PLATE

Right Hand

1шт.

2

121369A1

SUPPORT

Left Hand, Replaces 1319901C1

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

9шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

5

1321139C1

PLATE

Left Hand

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

10

1321553C1

BRACKET

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

189449A1

SUPPORT

Left Hand, Front, Inc. Decal, See Figure(s) 09H-21, REF 7

1шт.

14

241729A1

TUBE

1шт.

With Advanced Farming System

1шт.

18

1319952C1

PLATE

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

22

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

5/16 x 7; 2

1шт.

23

492-11031

LOCK WASHER,5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

1317222C1

PLATE

1шт.

30

1321128C1

COVER

Front

1шт.

31

1319942C1

COVER

Rear

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

35

1317792C2

ANGLE

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

38

188029C1

LATCH

1шт.

39

198581A2

STIFFENER

Conveyor

1шт.

40

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

43

1317251C3

SUPPORT

2шт.

44

1310040C1

BAR

4шт.

45

231-5146

FLANGE NUT,3/8"-16

4шт.

46

1317250C91

FLANGED BEARING,31.75mm ID

Optional With REF. 100 - 103 (09D-01, 09D-02)

2шт.

48

231-5146

FLANGE NUT,3/8"-16

4шт.

49

557995R11

COLLAR

2шт.

50

1317429C1

SHAFT

1шт.

52

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

6шт.

53

1317192C1

SPROCKET

2шт.

54

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

58

1317193C2

SPACER

31 x 38 x 52 mm

2шт.

59

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

1/2 x 5-1/2

1шт.

60

1317474C2

CHANNEL

1шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

63

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

65

1321265C2

DOOR

Side

1шт.

67

1321228C1

EXTENSION

1шт.

73

1321496C1

SUPPORT

Left Hand

1шт.

76

1321155C1

SPACER

1шт.

77

1979472C1

SHEET

Right Hand

1шт.

78

193765C1

STIFFENER

1шт.

80

1321618C2

PLATE

1шт.

83

1321832C2

SUPPORT

1шт.

87

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

30шт.

90

1321130C1

TROUGH

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

92

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

96

1321129C1

PLATE

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

100

1979642C1

SPACER

2шт.

Used with REF 101 - 103

1шт.

101

557995R11

COLLAR

2шт.

Used with REF 100, 102, 103

1шт.

102

581469R1

FLANGE,Bearing

4шт.

Used with REF 100, 101, 103

1шт.

103

156011C92

BALL BEARING

2шт.

Used with REF 100 - 102

1шт.

104

1984383C2

WEAR STRIP

Not Illustrated

1шт.

105

275319A1

NUT

Not Illustrated

2шт.
