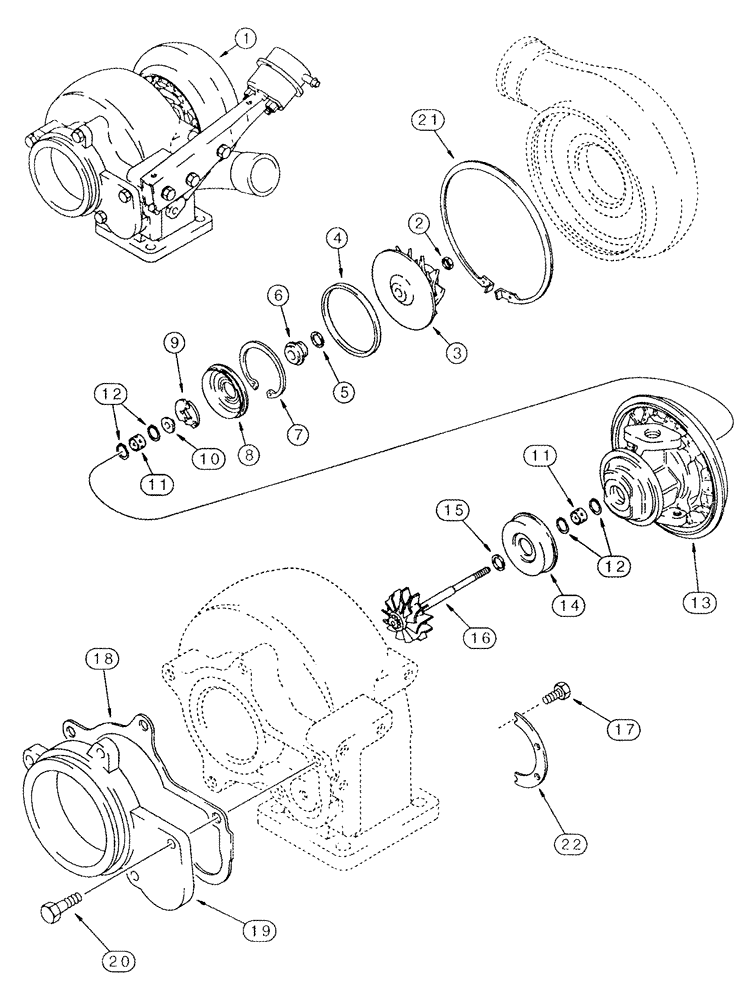

Запчасти Case IH 2344 (02-15) - TURBOCHARGER ASSY (01) - ENGINE

1

J802695

TURBOCHARGER

Turbocharger, Inc. 2 - 22, J536319, J709861, J519807, Also Inc. 1 - 12, See Figure(s) 02-16

1шт.

1

JR802695

REMAN-TURBOCHARGER

Turbocharger, Remanufactured, Inc. 2 - 22, JR536319, J919369, J931350, Also Inc. 1 - 12, See Page(s) 2-33

1шт.

1

JC536319

CORE-TURBOCHARGER

Return Part Number

1шт.

J537817

HOUSING

Turbocharger, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535001

GASKET,0.25mm Thk

1шт.

19

J527759

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

Replaces J532637

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
