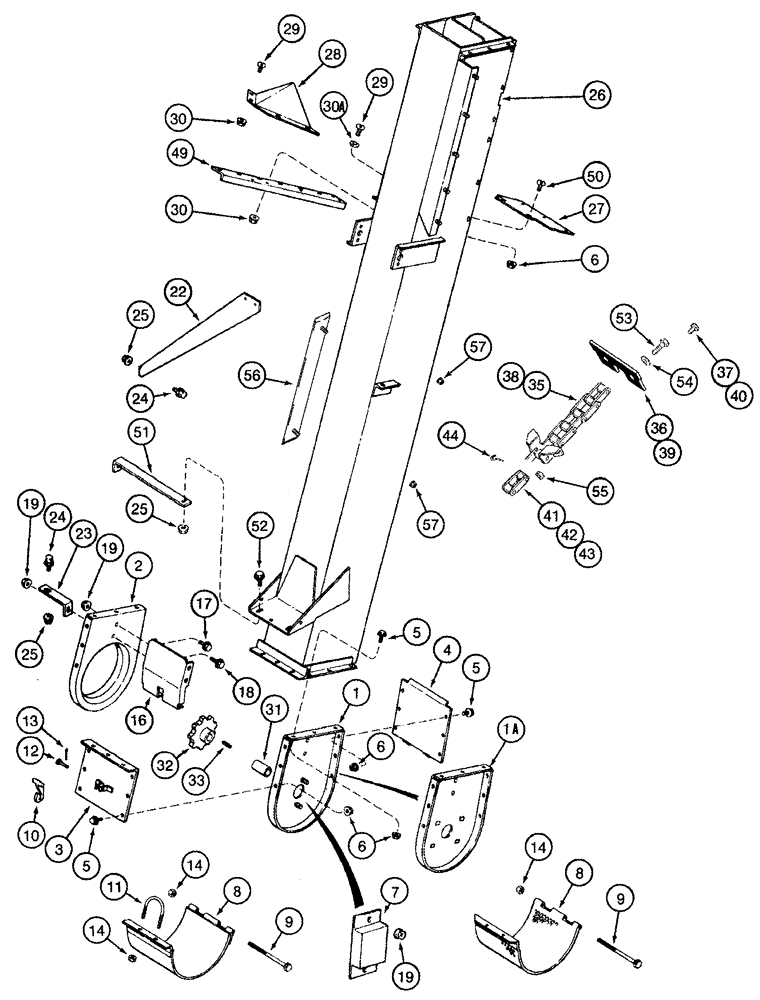

Запчасти Case IH 2344 (09D-03) - GRAIN ELEVATOR - HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

1

1318585C3

LARGE PLATE

PLATE, LARGE Outer, If Used

1шт.

1a

223237A1

SIDE PLATE

Outer

1шт.

With Advanced Farming System

1шт.

2

1317673C2

BASE

Inner

1шт.

3

1317271C1

COVER

Rear

1шт.

4

1317273C1

COVER

Front

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

7

1330011C2

COVER

Australia Only

1шт.

8

1317276C1

DOOR

Non-perforated

1шт.

8

1317841C1

DOOR

Perforated

1шт.

9

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

5/16 x 7-1/2

1шт.

10

155909C1

LATCH

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

5/16

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

1/4 x 1-1/4; 2

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

14

231-4115

NUT,5/16"-18, GB

3шт.

16

1317270C3

GUARD

Grain, Bottom

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

19

231-5146

FLANGE NUT,3/8"-16

6шт.

22

1317362C5

SUPPORT

Lower

1шт.

23

1327667C2

SUPPORT

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

231-5146

FLANGE NUT,3/8"-16

7шт.

26

1317376C6

HOUSING

1шт.

27

303956A1

LARGE PLATE

PLATE, LARGE Replaces 1317688C1

1шт.

28

1317698C1

PLATE

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

16шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

30a

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

7шт.

31

1317193C2

SPACER

31 x 38 x 52 mm

3шт.

32

1317192C1

SPROCKET

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

1321334C92

ELEVATOR CHAIN

Inc. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Chain Assy

1шт.

36

1317480C2

RUBBER FLIGHT

37шт.

37

185053C1

RIVET

74шт.

1317613C92

PALLET

Inc. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Link, Connecting

1шт.

39

1317480C2

RUBBER FLIGHT

1шт.

40

185053C1

RIVET

2шт.

41

241-15113

LINK,41.4mm Pitch

No. C550, 1-5/8 P

1шт.

42

241-12113

LINK,Chain, 41.4mm Pitch

No. C550, 1-5/8 P

1шт.

43

241-18113

LINK,41.4mm Pitch

No. C550, 1-5/8 P

1шт.

44

23442R1

PIN,2.36mm OD

S Type, No. 550

2шт.

49

1317493C1

BRACKET

1шт.

50

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

51

1317625C1

SUPPORT

1шт.

52

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

53

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

55

232-4116

NUT,3/8"-16, GC

2шт.

56

1984383C2

WEAR STRIP

1шт.

57

275319A1

NUT

2шт.
