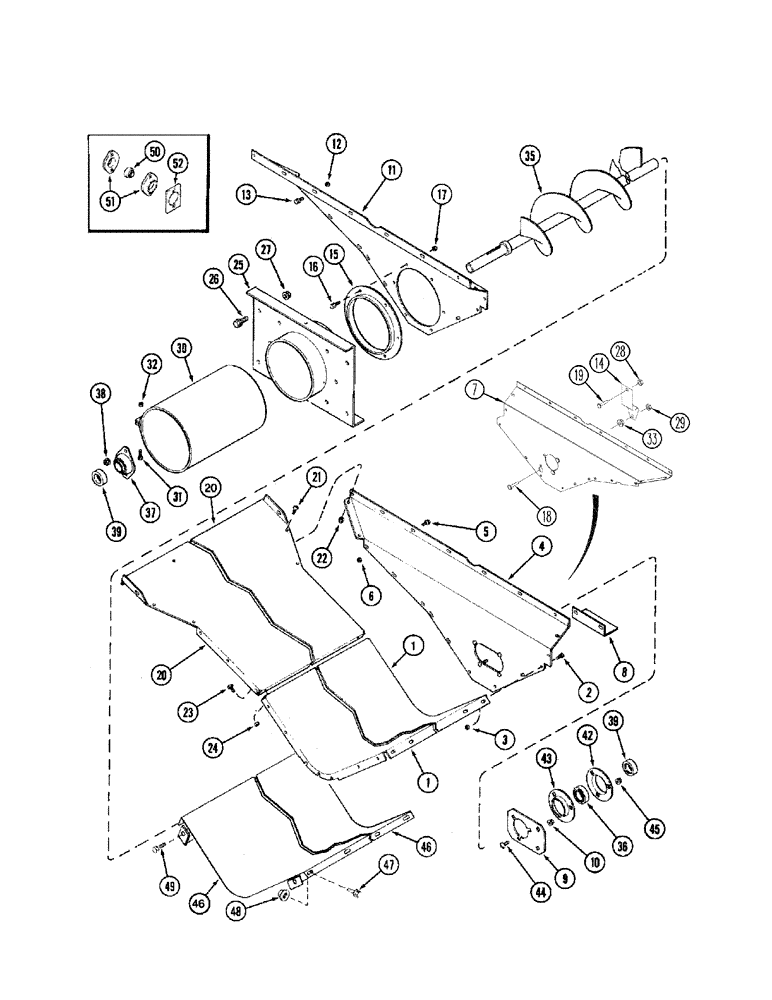

Запчасти Case IH 2344 (09D-02) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1541821C1

TROUGH

Perforated, Clean Grain

1шт.

1

1541638C1

TROUGH

Non-perforated, Clean Grain

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

Used with 1541638C1

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

Used with 1541821C1

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

Used with 1541638C1

1шт.

3

231-5315

FLANGE NUT,Flg, 5/16"-18

10шт.

Used with 1541821C1

1шт.

4

1541635C1

SUPPORT

Left Hand, Serial Range: -JJC174449

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

7

430033A1

SUPPORT

Left-Hand, Start Serial: JJC0174450

1шт.

8

1317418C1

ANGLE

Left Hand, Serial Range: -JJC0174449

1шт.

8

1317418C3

ANGLE

Left-Hand, Start Serial: JJC0174450

1шт.

9

186717C1

PLATE

Left Hand

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

1541637C1

SUPPORT

Right Hand

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

15

188285C1

RETAINER

Right Hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

18

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

Flange, 1-1/4 x 5/16; 5

1шт.

19

440-11024

SCREW,Cross Pan Hd, #10-24 x 1 1/2"

1-1/2 x No. 10

1шт.

20

191716C1

EXTENSION

Extension

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

25

1327668C1

SUPPORT

1шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2 x 1-1/4

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1

9шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

28

86625057

NUT,#10-24, GB

1шт.

29

231-4145

NUT,5/16"-18, GB

1шт.

30

1317454C1

CLAMP

Perforated

1шт.

30

1317452C1

CLAMP

Non-perforated

1шт.

31

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

31

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1; 2

3шт.

32

231-4115

NUT,5/16"-18, GB

3шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

35

1317484C2

AUGER

Clean Grain, Serial Range: -JJC0174359

1шт.

35

1317484C3

AUGER

Clean Grain JJC0174360 to

1шт.

36

156011C92

BALL BEARING

Left Hand

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

Right Hand, Optional With 50, 51, 52

1шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

557995R11

COLLAR

2шт.

42

939460R91

FLANGE

1шт.

43

939461R1

FLANGE

Grooved

1шт.

44

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

3/8 x 2

1шт.

45

231-5146

FLANGE NUT,3/8"-16

3шт.

46

1541823C1

COVER

1шт.

Used with 1541821C1

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

49

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

5/16 x 1

4шт.

50

156011C92

BALL BEARING

Used With 51, 52

1шт.

51

581469R1

FLANGE,Bearing

Used With 50, 52

2шт.

52

1979642C1

SPACER

Used With 50, 51

1шт.
