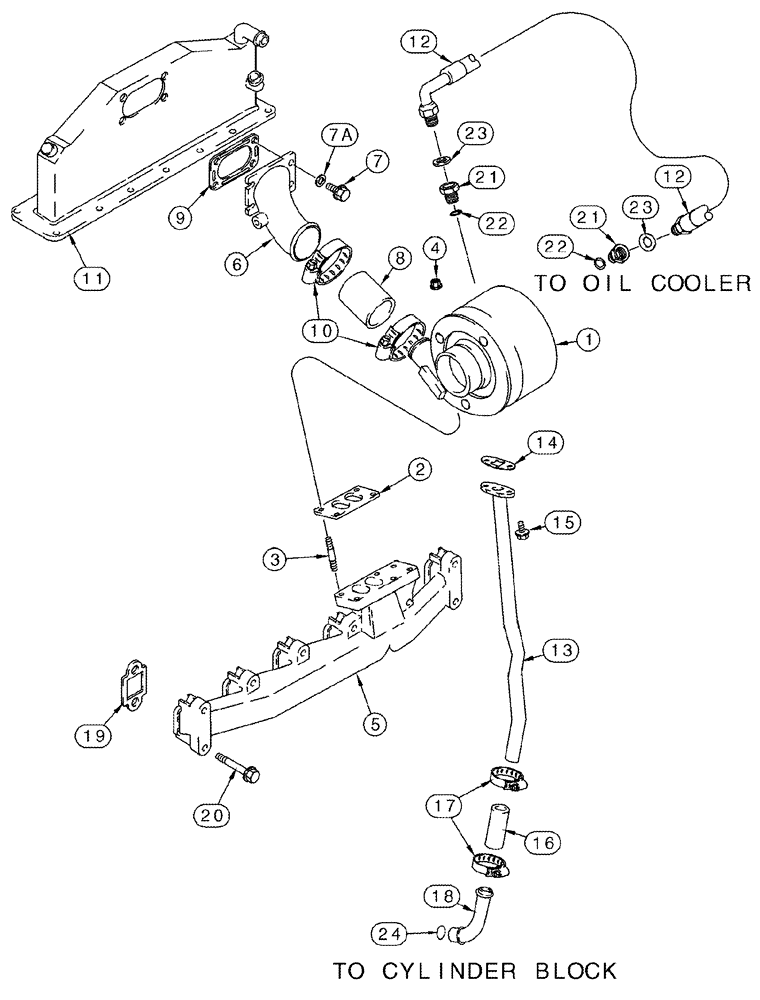

Запчасти Case IH 2344 (02-14) - TURBOCHARGER SYSTEM (01) - ENGINE

1

REF

INSTRUCTION

Turbocharger, See Figure(s) 02-15

1шт.

2

J919369

GASKET,0.5mm Thk

Replaces J901356

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

J931747

MANIFOLD

1шт.

6

J931991

CONNECTION

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

7a

J918189

SEALING WASHER

4шт.

8

J931805

INTAKE AIR HOSE

58 mm (2-5/16 in), Replaces J916529

1шт.

9

J914856

GASKET,1.02mm Thk

1шт.

10

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

11

J919806

AFTERCOOLER

See Figure(s) 02-13

1шт.

12

J918562

HOSE

538 mm (21-1/4")

1шт.

13

J934093

TUBE

Replaces J918579

1шт.

14

J285747

GASKET

Replaces J931350

1шт.

15

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

16

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

18

J931973

TUBE,0.875" OD

Replaces J903744

1шт.

19

J927154

GASKET,0.38mm Thk

6шт.

20

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

21

J919687

HYD CONNECTOR

Inc. 22

2шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

23

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

24

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
