Запчасти Case IH 2344 (09C-03) - CLEANING FAN - HOUSING (15) - BEATER & CLEANING FANS

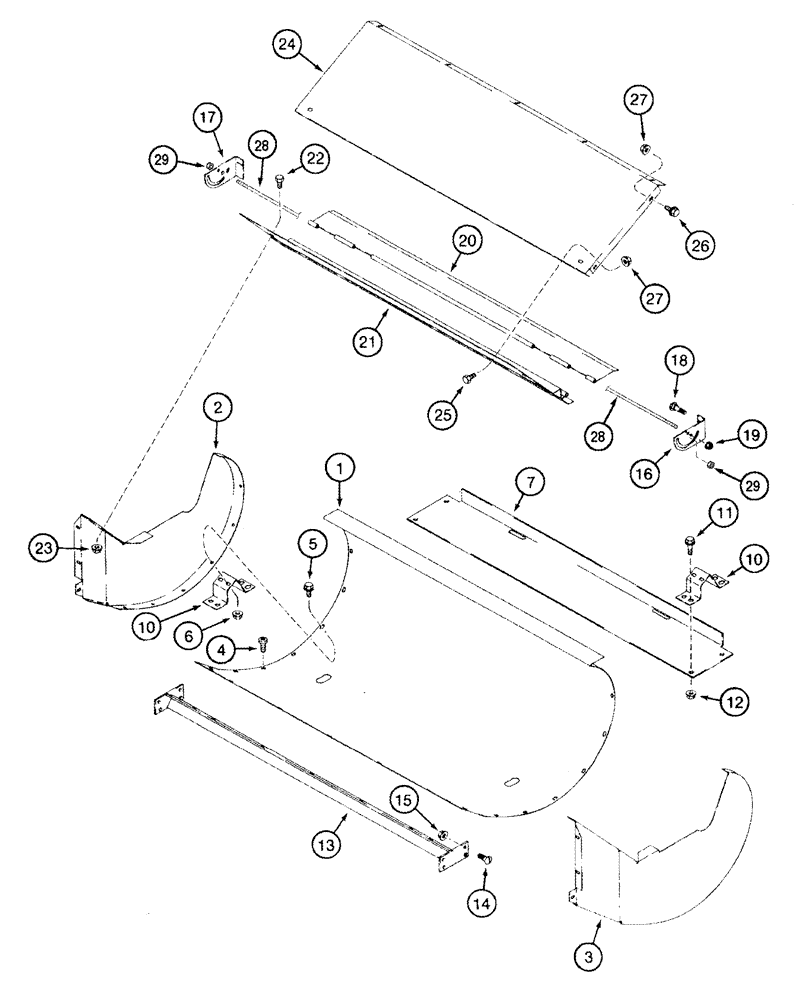

Схема запчастей Case IH 2344 - (09C-03) - CLEANING FAN - HOUSING (15) - BEATER & CLEANING FANS
21
6
20
12
29
15
22
24
3
13
7
18
27
19
17
2
23
11
5
27
25
1
10
29
28
16
4
14
10
26
28

Артикул

Название

Примечание

Количество

1

1989379C1

HOUSING

1шт.

2

1347012C2

PLATE

Left Hand

1шт.

3

1347013C2

PLATE

Right Hand

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

21шт.

7

1541641C2

SUPPORT

Front

1шт.

10

1541543C1

BRACKET

Front

2шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191703C3

SUPPORT ASSY.

Rear

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

1989694C2

PLATE

Right Hand

1шт.

17

1989693C2

PLATE

Left Hand

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

1989611C1

HOOD

1шт.

21

1541628C1

HOOD

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

1989377C2

SUPPORT

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

28

185198C1

ROD

1шт.

29

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

2шт.

Выбрано товаров: 27
