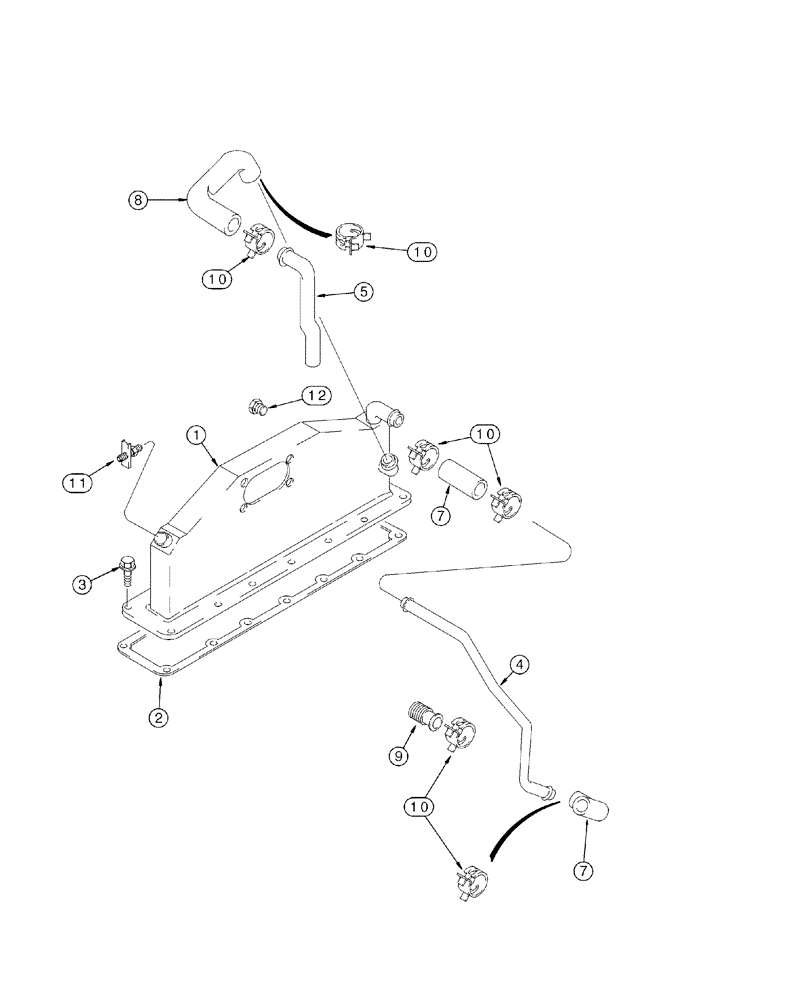

Запчасти Case IH 2344 (02-13) - AFTERCOOLER (01) - ENGINE

1

J919806

AFTERCOOLER

1шт.

2

J931347

GASKET

1шт.

3

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

12шт.

4

J914855

TUBE,0.75" OD

No Longer Used, Order J934170

1шт.

4

J934170

TUBE,0.75" OD

Replaces J914855

1шт.

5

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

No Longer Used, Order J926446

1шт.

5

J926446

TUBE,19.05 mm OD x 154.6 mm L

Replaces J905639

1шт.

7

J918607

HOSE,43.20 mm

1шт.

8

J928492

TUBE

1шт.

9

J907167

SPLINED COUPLING

1шт.

10

J918163

CLIP

6шт.

11

J909394

COCK, DRAIN

1шт.

12

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

13

J910778

DECAL

Not Illustrated

1шт.
