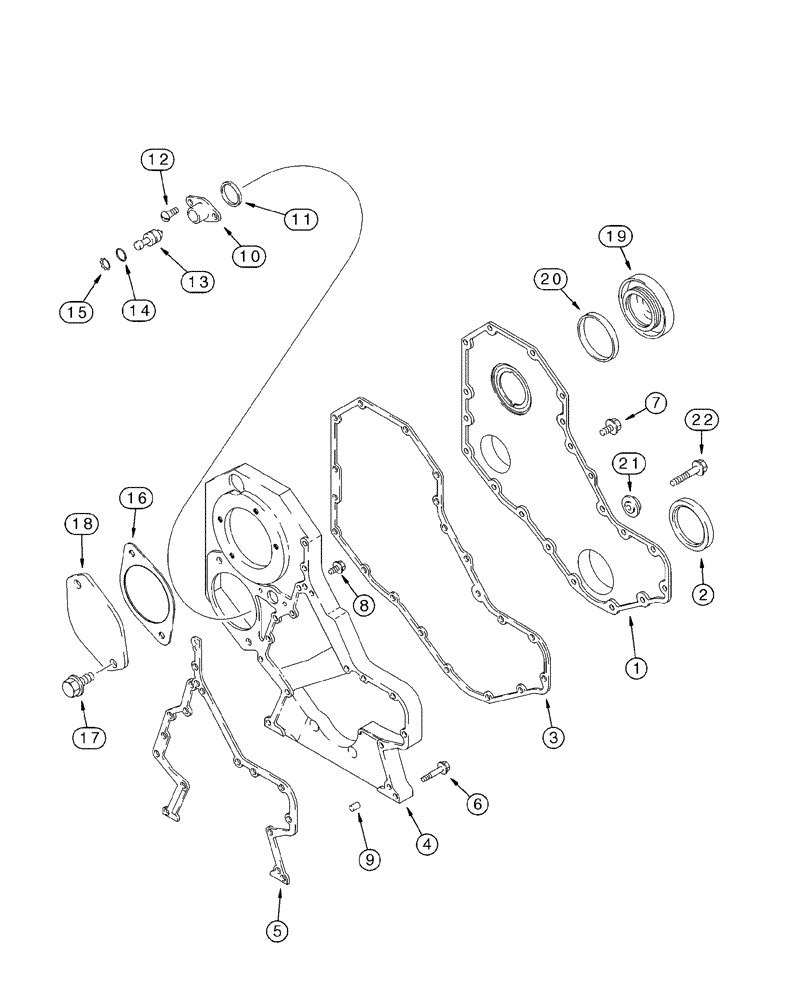

Запчасти Case IH 2344 (02-12) - FRONT GEAR COVER (01) - ENGINE

1

J918675

COVER

No Longer Used, Order J935581

1шт.

1

J935581

COVER

1шт.

Use J823494 Sealant, 3 oz

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, See Figure 02-24

1шт.

3

J918673

GASKET,1.02mm Thk

No Longer Used

1шт.

Used with J918675

1шт.

4

J932120

HOUSING

1шт.

5

J931351

GASKET

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

8шт.

8

J924962

FLANGE BOLT

M8 x 16

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

1шт.

19

J903463

PLUG,M63 x 5

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
