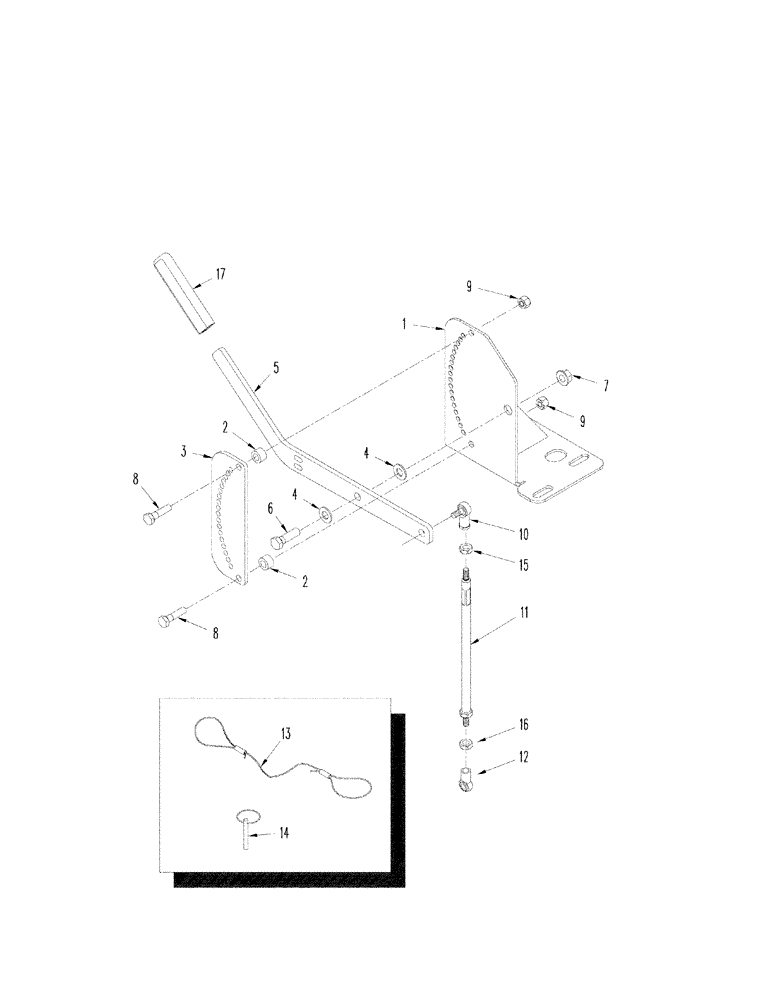

Запчасти Case IH 2344 (09B-21) - SIEVE ADJUSTMENT - ASN JJC0174450 (14) - ROTOR, CONCANVES & SIEVE

1

399898A2

BRACKET

Mounting

1шт.

2

416491A2

SPACER

2шт.

3

399763A2

PLATE

Location Indicator

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

5

399778A2

ADJUSTABLE SIEVE

Adjustment

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3/8 x 1-1/2; 5

1шт.

7

231-5146

FLANGE NUT,3/8"-16

(5)

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

231-4145

NUT,5/16"-18, GB

2шт.

10

403123A1

BALL JOINT,3/8" - 24

End

2шт.

11

407141A2

ROD

Chaffer Sieve Adjustment

1шт.

12

427179A1

BALL JOINT HEAD,3/8" - 24

End

2шт.

13

427336A1

CABLE,457.2mm L

2шт.

14

400310A1

PIN

Quick Release

2шт.

15

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

Jam, 3/4; 5

1шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

17

433741A1

GRIP

Moulding

1шт.
