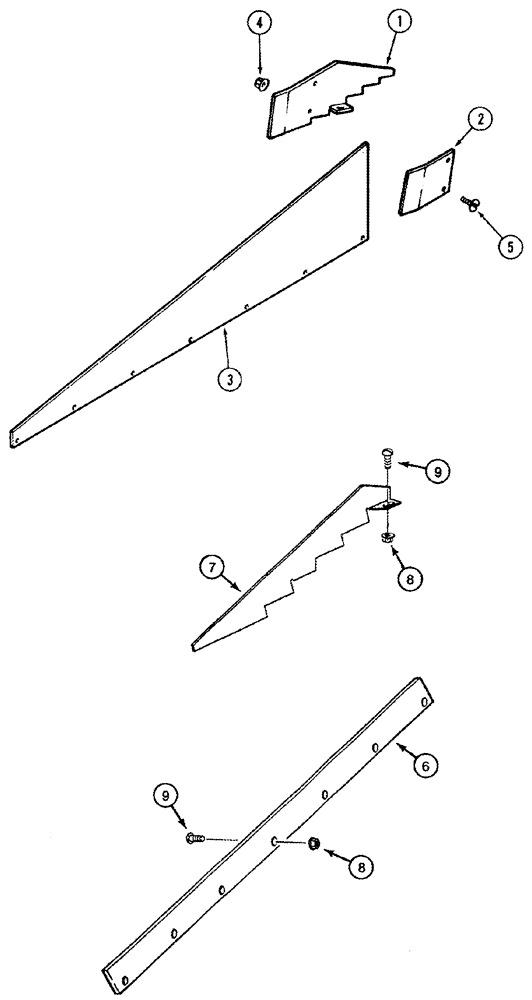

Запчасти Case IH 2344 (09B-20) - GRAIN PAN SIDE HILL DIVIDERS (14) - ROTOR, CONCANVES & SIEVE

180771C91

KIT

Hillside Grain Pan Divider, Tall, Inc. 1 - 5

3шт.

1

185115C1

DIVIDER

1шт.

2

185116C1

RETAINER

1шт.

3

185114C1

DIVIDER

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

11шт.

5

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

11шт.

313399A1

KIT

Hillside Grain Pan Divider, Short, Inc. 6 - 9

3шт.

6

1957596C2

DIVIDER

1шт.

7

1957597C1

DIVIDER

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

9шт.
