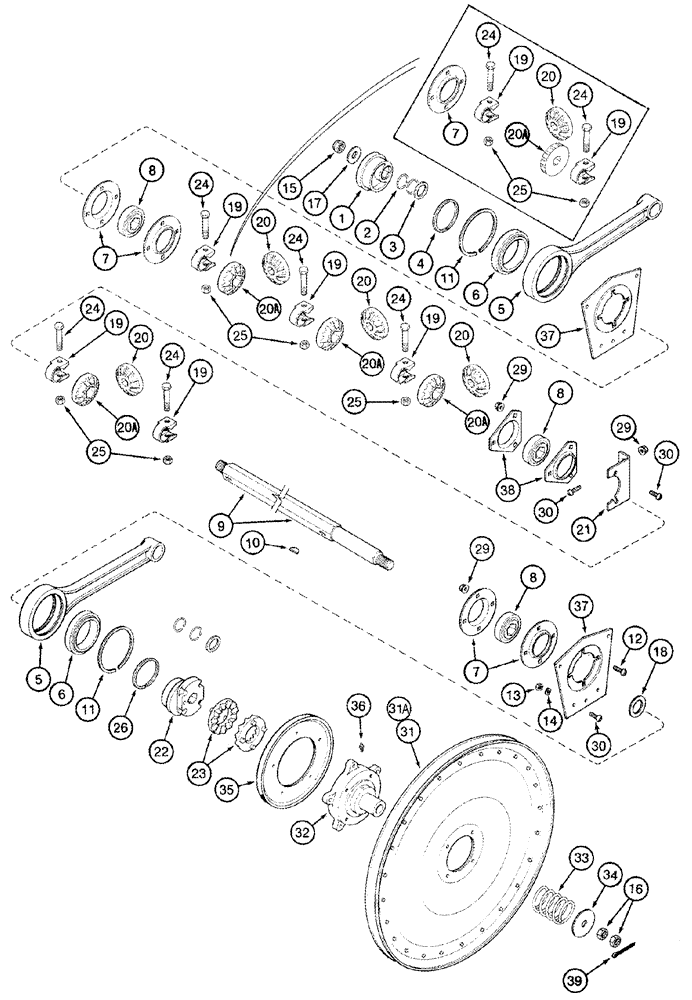

Запчасти Case IH 2344 (09B-15) - DRIVE - SHAKER SHAFT AND AUGER (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

Left Hand

1шт.

2

1322623C1

RETAINER

1-13/64 in

4шт.

3

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

29/32 x 1-1/4 x 1/8

1шт.

4

1979190C1

RETAINER

1шт.

5

1989251C1

ARM

Shaker Shaft, See Figure(s) 09B-16, REF 24

2шт.

6

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

2шт.

7

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

4шт.

8

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

9

1970192C2

SHAFT

1шт.

10

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

11

1322624C1

SNAP RING

5-1/8

2шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

15

231-41112

LOCK NUT,3/4"-10, GB

1шт.

16

425-1212

SLOTTED NUT,3/4"-10, G5

3/4

1шт.

17

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

1шт.

18

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

1-13/32 x 2-1/4 x 7/64

1шт.

19

225265R1

CLAMP

5шт.

20

194194C1

GEAR

14T

4шт.

20a

191677C1

GEAR

14T

4шт.

21

186589C1

SUPPORT

1шт.

22

1322574C1

CAM

Right Hand

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

2шт.

24

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

5шт.

25

231-4118

LOCK NUT,1/2"-13, GB

1/2

5шт.

26

1979190C1

RETAINER

1шт.

27

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

1-1/16 x 1-1/4 x 1/8

1шт.

29

231-5146

FLANGE NUT,3/8"-16

5шт.

30

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

31

193682C1

PULLEY

25 in OD, Driven, See Figure(s) 09A-02

1шт.

32

1303136C1

HUB

1шт.

33

19302K

SPRING

1шт.

34

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

1шт.

35

566516R92

PULLEY,256.46mm OD

Drive 9-3/4 OD

1шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

37

1302221C1

PLATE

2шт.

38

180955C1

FLANGED BEARING,0.375"

2шт.

39

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

40

38-12032

LOCK PIN,5/16" x 2", Slotted

. not illustrated 5/16" x 2", Slotted

4шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

8шт.
