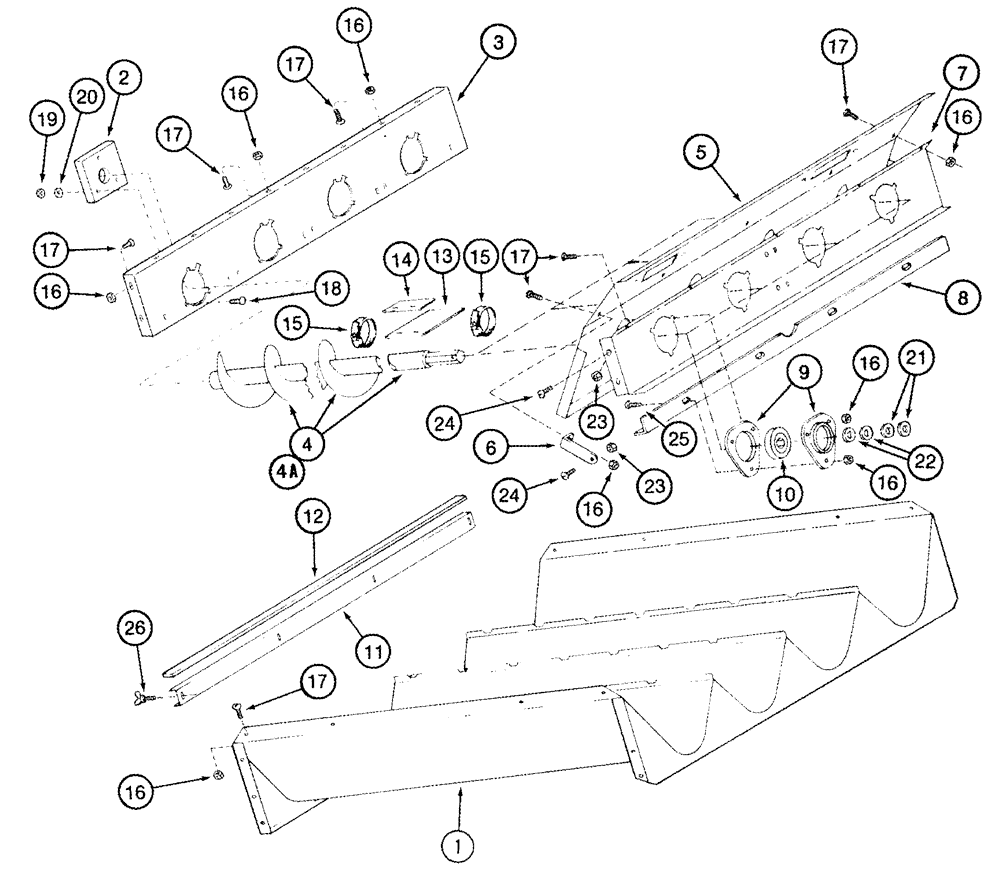

Запчасти Case IH 2344 (09B-14) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

185038C7

TROUGH ASSY.

1шт.

2

193414C2

BOARD

4шт.

3

1345013C3

SUPPORT

1шт.

4

1308541C1

AUGER

Right Hand Rotation

3-4шт.

4

249278A1

AUGER

Extended Wear, Right Hand Rotation

3-4шт.

4a

1309229C1

AUGER

Left Hand Rotation, Mounted in Left Most Position on the Auger Bed, Replaces One 1308541C1, REF 4, Right Hand Rotation Auger

1шт.

4a

282955A1

AUGER

Extended Wear, Left Hand Rotation, Mounted in Left Most Position on the Auger Bed, Replaces One 249278A1, REF 4, Right Hand Rotation Auger

1шт.

5

1321373C1

PLATE

1шт.

6

193554C1

SUPPORT

2шт.

7

1309225C1

SUPPORT

1шт.

8

188359C1

ANGLE

1шт.

9

571424R1

FLANGE

8шт.

10

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

4шт.

11

1319163C91

COVER

Inc. 12

1шт.

12

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

1шт.

13

1302112C1

STRIP

1шт.

14

1302113C1

BAR

1шт.

15

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

18

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4

12шт.

19

231-4116

NUT,3/8"-16, GB

3/8

12шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

12шт.

21

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

8шт.

22

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

8шт.

23

231-5146

FLANGE NUT,3/8"-16

7шт.

25

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

4шт.

26

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

4шт.

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

8шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

24

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
