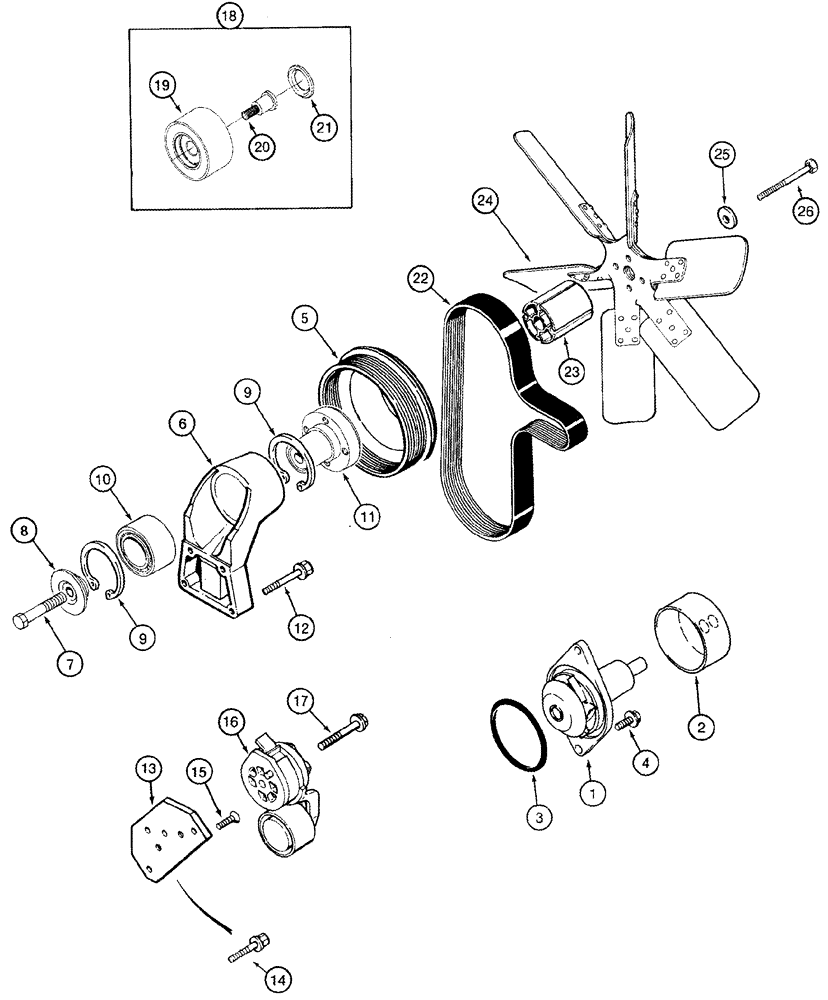

Запчасти Case IH 2344 (02-11) - WATER PUMP SYSTEM (01) - ENGINE

J802358

PUMP, WATER

Inc. 1 - 3, No Longer Used, Order J802970

1шт.

J286278R

REMAN-WATER PUMP

2344

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

J802970

PUMP, WATER

Water Pump, Inc. 1 - 3, Replaces J802358

1шт.

J286278R

REMAN-WATER PUMP

2344

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

1шт.

6

J913433

BRACKET

Inc. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

13

J925207

SUPPORT

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

16

J918944

BELT TENSIONER

No Longer Used, Order J936203

1шт.

16

J934817

BELT TENSIONER

Replaces J918944, No Longer Used, Order J936203

1шт.

16

J936203

BELT TENSIONER

1шт.

17

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

18

A77817

KIT

Pulley, Inc. 19 - 21

1шт.

Used with J934817, REF 16

1шт.

19

NSS

NOT SOLD SEPARAT

Pulley

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt

1шт.

21

NSS

NOT SOLD SEPARAT

Seal

1шт.

22

J911565

V-BELT,27.92mm W x 1473.2mm L, 8 Ribs

1шт.

23

A184548

SPACER,Fan, 89/90mm Thk

90 mm

1шт.

24

111898A1

FAN

1шт.

25

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

13/32 x 1-1/4 x 1/4

4шт.

26

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

4шт.

26

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

M10 x 125

4шт.
