(02-10) - EXHAUST SYSTEM - SPARK ARRESTER

Запчасти Case IH 2344 (02-10) - EXHAUST SYSTEM - SPARK ARRESTER (01) - ENGINE

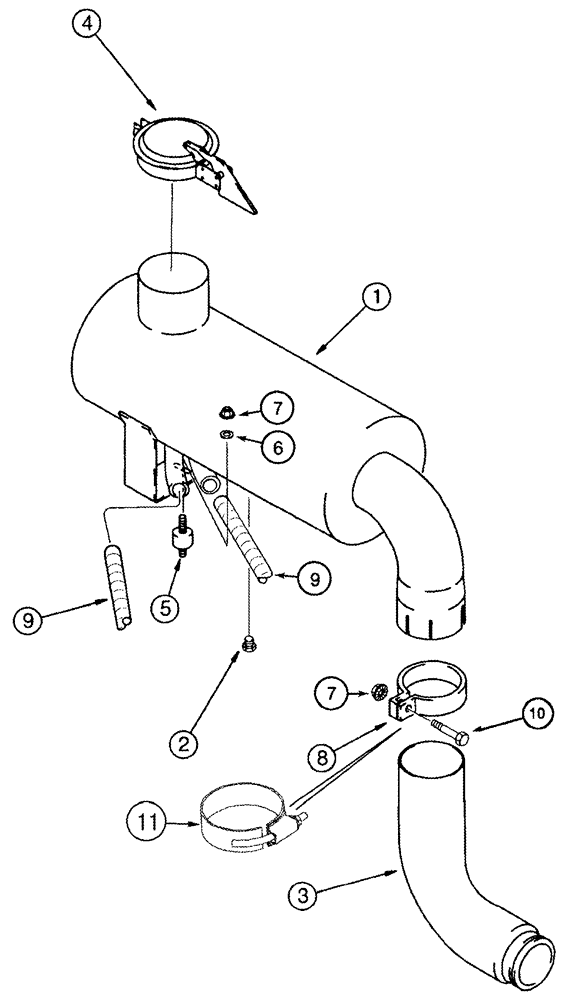

Схема запчастей Case IH 2344 - (02-10) - EXHAUST SYSTEM - SPARK ARRESTER (01) - ENGINE
7
1
3
7
4
11
9
6
10
9
5
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280811A1

MUFFLER

Muffler Spark Arrester

1шт.

2

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

3

339972A1

ELBOW

Elbow

1шт.

4

182770A1

CAP

Cap

1шт.

5

1979761C1

SPACER

3/8" ID x 1

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

650986C1

CLAMP,69.85mm - 82.55mm

Clamp

1шт.

9

255058A1

LARGE HOSE

HOSE,LARGE Hose Check 1150 mm (45-1/4 in) Valve to Spark Arrester Strata to Spark Arrester

2шт.

10

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

11

A173381

CLAMP,117.7mm ID

Includes Hardware

1шт.
