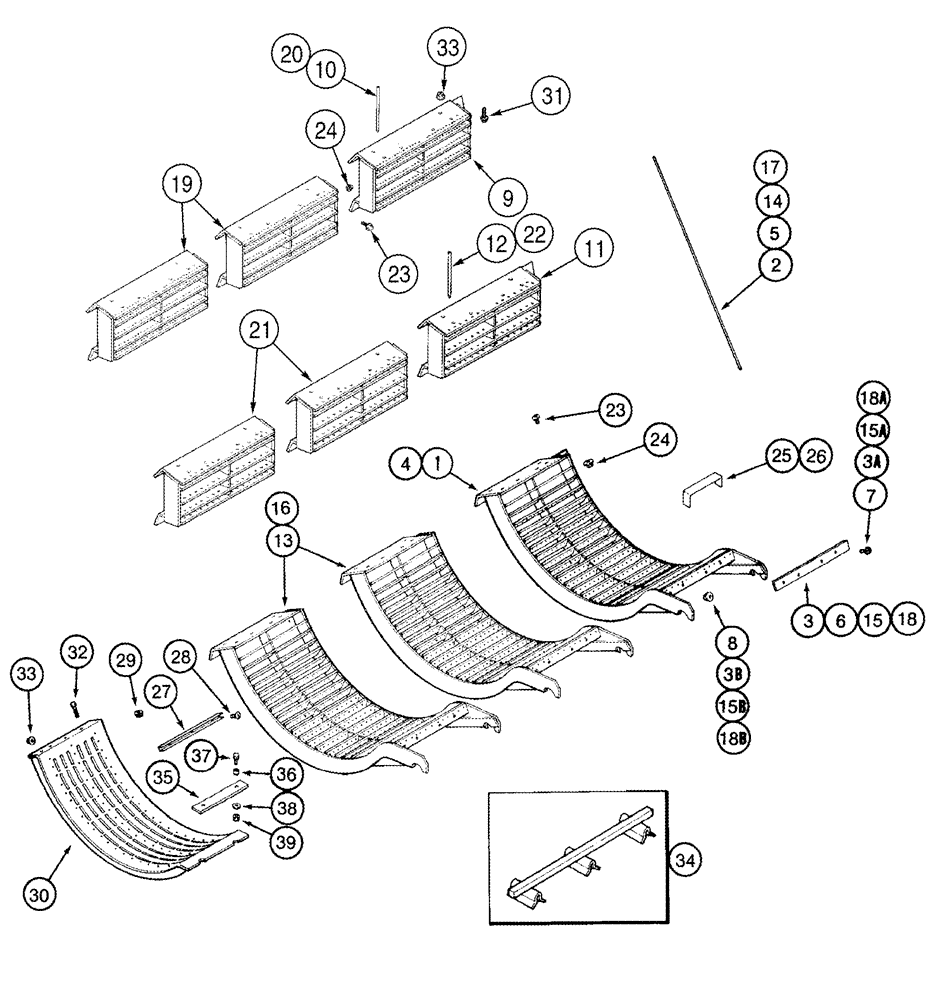

Запчасти Case IH 2344 (09B-11[01]) - CONCAVES - GRATES AND CONCAVES, BSN JJC0174449 (14) - ROTOR, CONCANVES & SIEVE

1

1309208C3

CONCAVE

Inc. 2 - 3B, Front, Small Wire

1шт.

2

1302602C2

ROD

3/16 x 29

30шт.

3

193859C1

PLATE

2шт.

3a

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

8шт.

3b

231-5146

FLANGE NUT,3/8"-16

8шт.

4

1302606C5

CONCAVE

Inc. 5 - 8, Front, Large Wire

1шт.

5

1302601C2

STEM

1/4 x 29

14шт.

6

193859C1

PLATE

2шт.

7

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

8шт.

8

231-5146

FLANGE NUT,3/8"-16

8шт.

9

307984A1

CONCAVE

Inc. 193859C1, 450-73816, 231-5146, 1318561C1, Small Wire Extension, Replaces 1318553C1

1шт.

9a

193859C1

PLATE

Not Illustrated

2шт.

9b

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1, Not Illustrated

4шт.

9c

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

4шт.

10

1318561C1

PIN

PIN, LARGE

30шт.

11

307982A1

CONCAVE

Inc. 1318560C1, 193859A1, 450-73816, 231-5146, Large Wire Extension, Replaces 1315551C1

1шт.

12

1318560C1

LARGE PIN

PIN, LARGE

14шт.

12a

193859C1

PLATE

Not Illustrated

2шт.

12b

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1, Not Illustrated

4шт.

12c

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

4шт.

13

1309210C3

CONCAVE

Inc. 14 - 15B, No. 2 and 3 Small Wire, Grain

1шт.

14

1302602C2

ROD

3/16 x 29

30шт.

15

193859C1

PLATE

2шт.

15a

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

8шт.

15b

231-5146

FLANGE NUT,3/8"-16

8шт.

16

1302607C4

CONCAVE

Inc. 17 - 18B, No. 2 and 3 Large Wire, Grain

1шт.

17

1302601C2

STEM

1/4 x 29

14шт.

18

193859C1

PLATE

2шт.

18a

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

8шт.

18b

231-5146

FLANGE NUT,3/8"-16

8шт.

19

307985A1

CONCAVE

Inc. 1318561C1, 193859C1, 450-73816, 231-5146, No. 2 and 3 Small Wire Extension, Replaces 1318554C1

2шт.

20

1318561C1

PIN

PIN, LARGE

30шт.

20a

193859C1

PLATE

Not Illustrated

2шт.

20b

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1, Not Illustrated

4шт.

20c

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

4шт.

21

307983A1

CONCAVE

Inc. 1318560C1, 193859C1, 450-73816, 231-5146, No. 2 and 3 Large Wire Extension, Replaces 1318552C1

2шт.

22

1318560C1

LARGE PIN

PIN, LARGE

14шт.

22a

193859C1

PLATE

Not Illustrated

2шт.

22b

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1, Not Illustrated

4шт.

22c

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

4шт.

23

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

3/8 x 1; 8

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

1309425C1

CHANNEL

Small Wire

6шт.

26

1309424C1

CHANNEL

Large Wire

6шт.

27

191536C1

CHANNEL

1шт.

Used with 191538C3, REF 30

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

30

191538C3

GRATE ASSY.

Slotted

3шт.

30

1302562C1

CONCAVE

Keystock

3шт.

30

1319750C1

GRATE

Smooth, Sunflower Seed

1шт.

31

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

3/8 x 1; 8

1шт.

32

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4; 8

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

1324046C3

BAR

Small Wire

30шт.

35

186784C2

BAR

Grate Hanger

3шт.

36

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

37

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

38

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

39

232-4118

NUT,1/2"-13, GC

6шт.
