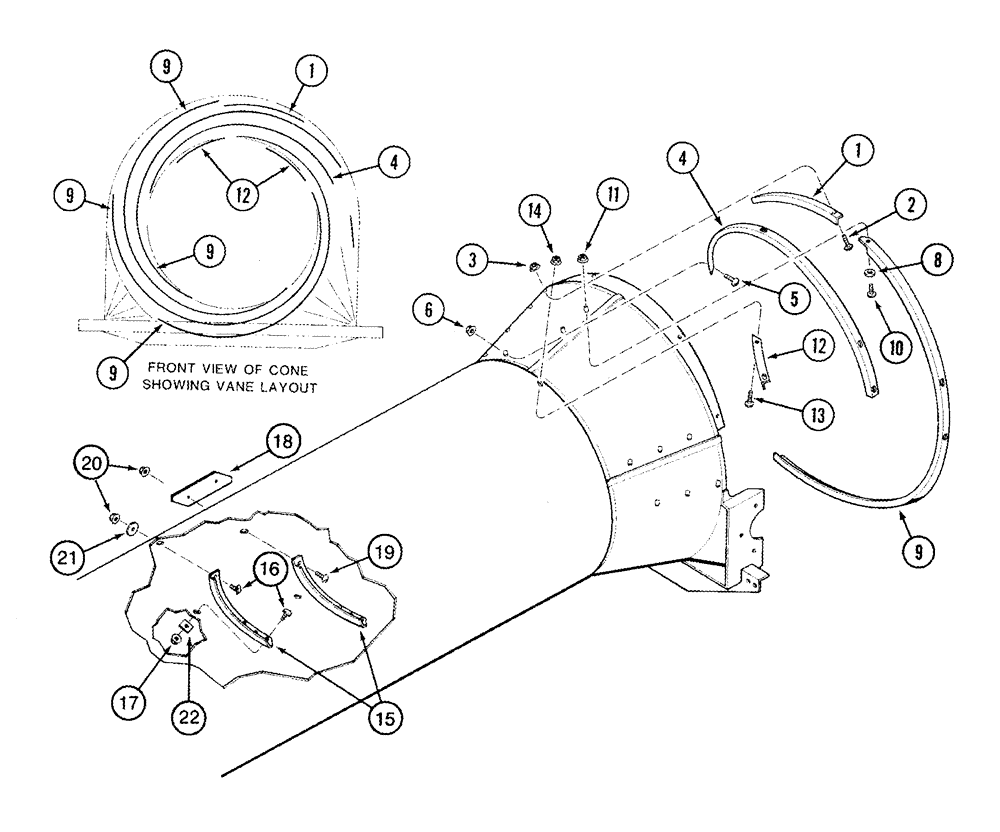

Запчасти Case IH 2344 (09B-10) - VANE (14) - ROTOR, CONCANVES & SIEVE

1

186984C1

EXTENSION

Cone Extension

2шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

186985C3

SUPPORT

Cone, Upper Front

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

8

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

9

195355C3

GUIDE

Cone, Front

4шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

24шт.

10

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

11

231-1445

NUT,5/16"-18, GB

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

12

193179C2

VANE

Transport Extension

3шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

15

193175C2

GUIDE

Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318418C1

BAR

6шт.

19

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32 x 2-1/2 x 5/32

10шт.

22

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32 x 1-1/2 x 3/16

2шт.
