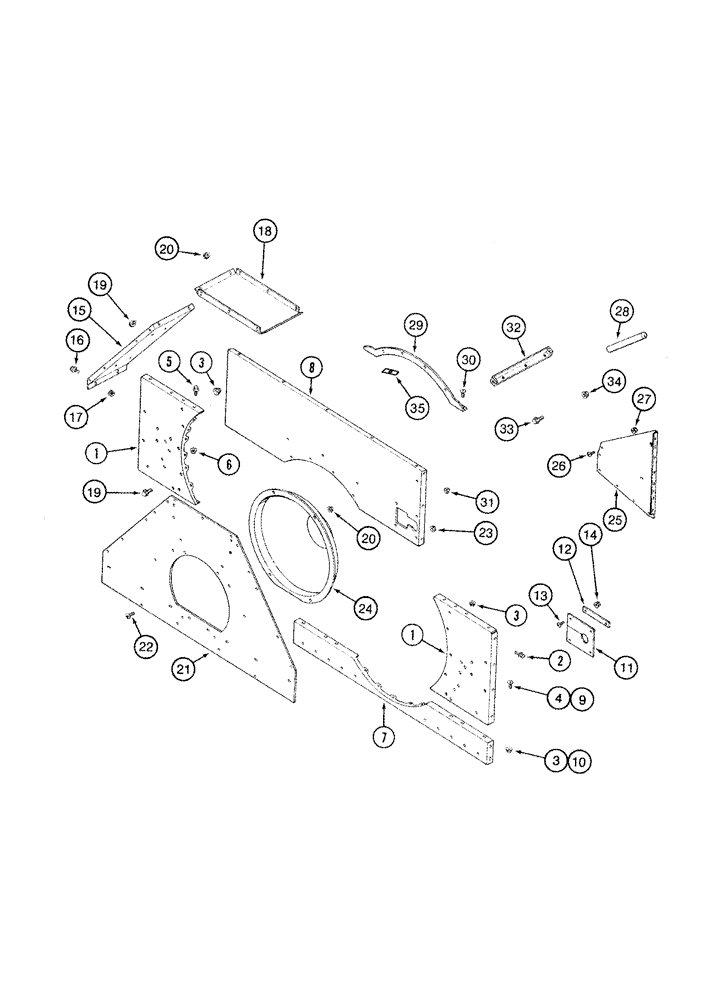

Запчасти Case IH 2344 (09B-09) - CAGE - REAR (14) - ROTOR, CONCANVES & SIEVE

1

1994850C2

SUPPORT

Rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

16шт.

3

231-5146

FLANGE NUT,3/8"-16

24шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

7

182929C1

SUPPORT

Lower Rear

1шт.

8

176202A1

SHEET

Upper Rear

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

23шт.

10

231-5146

FLANGE NUT,3/8"-16

23шт.

11

191191C2

GASKET,6.35mm Thk

1шт.

12

191192C1

BAR

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

193169C1

SUPPORT

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

193170C1

COVER

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

21

193966C1

PLATE

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

24

182545C2

HOUSING

1шт.

25

191398C2

SHEET

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

191498C1

SEALING STRIP

528 mm (20-13/16 in), If Used

1шт.

29

1308695C1

SUPPORT

Upper Rear

1шт.

30

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

7шт.

31

231-5146

FLANGE NUT,3/8"-16

7шт.

32

182634C3

SUPPORT

Rear

1шт.

33

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1

2шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

35

186797C2

SUPPORT

1шт.
