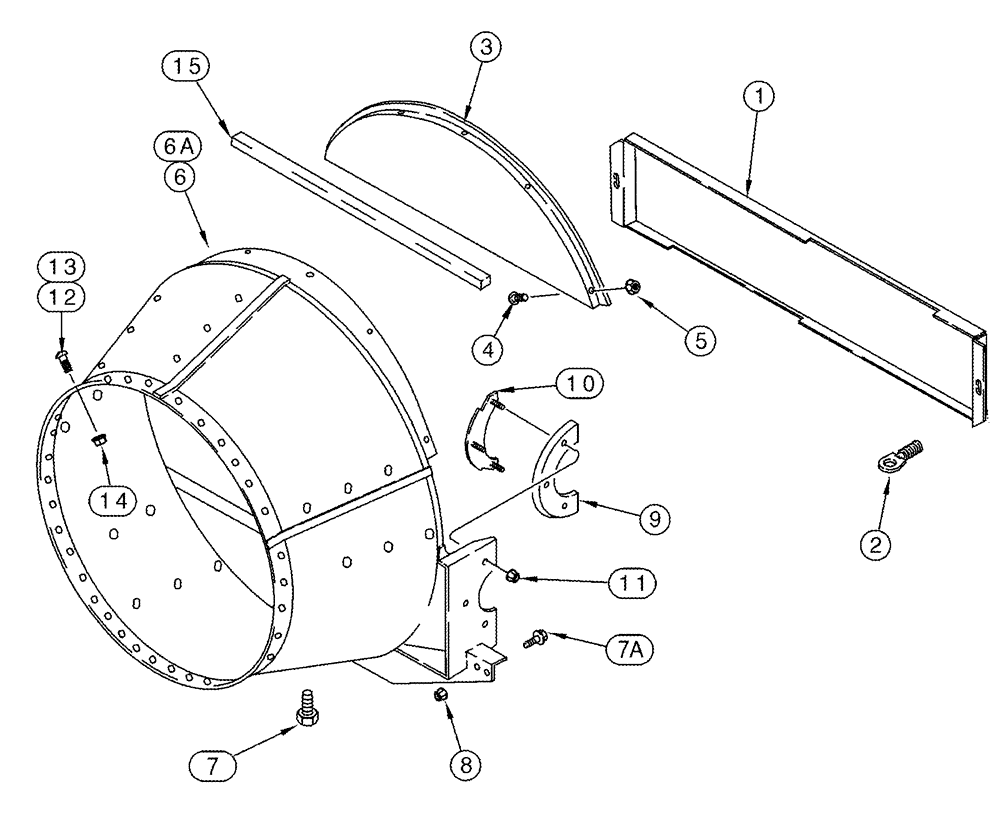

Запчасти Case IH 2344 (09B-07) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

137607A2

TRAP DOOR

1шт.

2

188029C1

LATCH

2шт.

3

1302515C1

DOOR

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Replaces 477-73112

5шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

6

194047A2

CONE

Inc. 7

1шт.

6a

373271A1

CONE

Heavy Duty, Inc. 7

1шт.

7

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1/2 x 1/2

1шт.

7a

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

195202C1

SEAL

2шт.

10

195409C1

PLATE

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

12

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

17шт.

14

231-5146

FLANGE NUT,3/8"-16

19шт.

15

233482A1

DOOR SEAL,380mm L

2шт.

365928A2

CONE

Heavy Duty, Inc. 373271A1, Also Inc. 249252A2, 249257A1, 249254A1, See Figure(s) 09B-10, Also Inc. Hardware

1шт.
