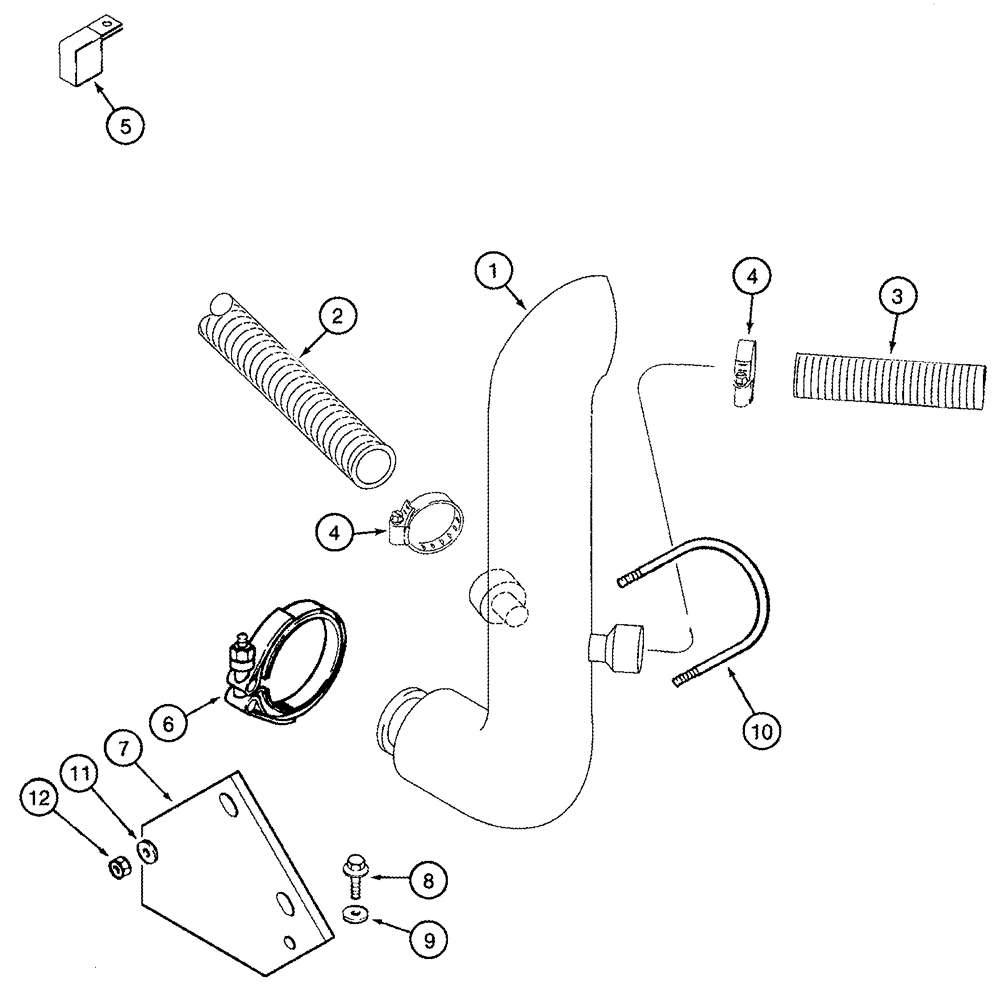

Запчасти Case IH 2344 (02-09) - EXHAUST SYSTEM - PIPE (01) - ENGINE

1

252658A3

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

255060A2

HOSE

Strata to Exhaust Pipe, 820 mm (32-1/4 in)

1шт.

3

255061A2

HOSE

Check Valve to Exhaust Pipe, 620 mm (24-3/8 in)

1шт.

4

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

5

1301387C2

CLIP

2 in ID

1шт.

6

A170467

CLAMP,72mm ID

Inc. Hardware

1шт.

7

291458A1

SUPPORT

1шт.

8

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

9

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

10

117410A2

U-BOLT

3/8"

1шт.

11

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

12

231-4116

NUT,3/8"-16, GB

3/8

2шт.
