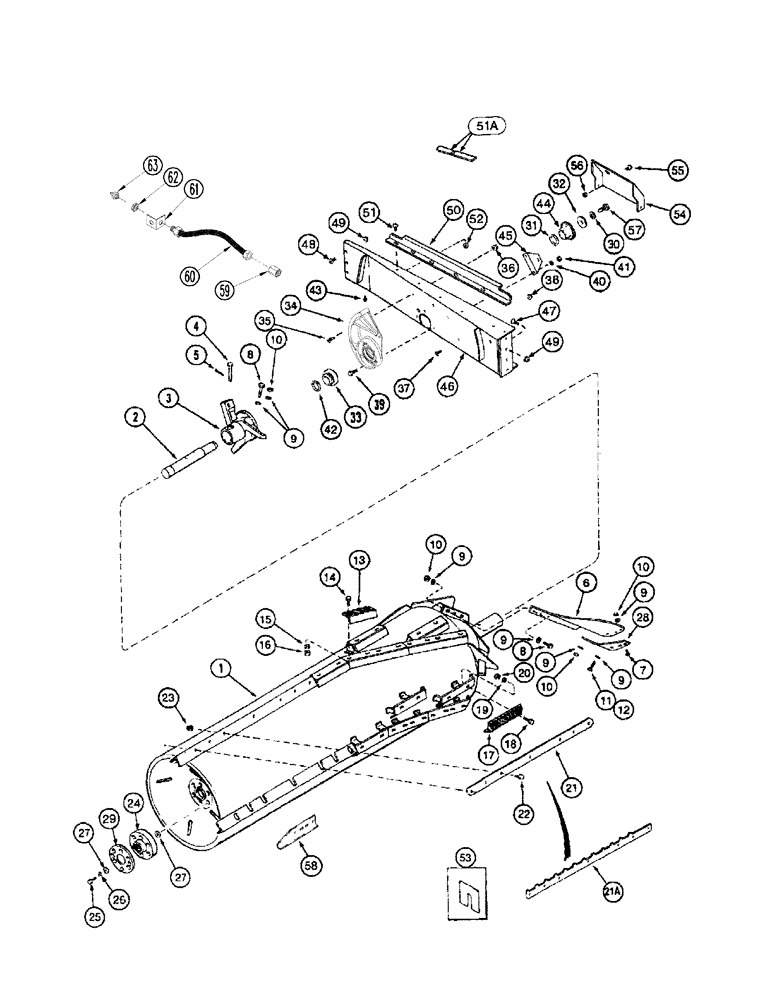

Запчасти Case IH 2344 (09B-05) - ROTOR ASSY - CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE

256598A1

ROTOR

Inc. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

Rotor

1шт.

2

191545C2

SHAFT

1шт.

3

191546C2

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

Rotor Blade, Inc. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

Blade, Rotor

3шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

1/2 x 1-1/2

9шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

39шт.

10

199528A1

NUT

1/2; 8

24шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

13

1308829C2

BAR

12шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

24шт.

16

232-4136

LOCK NUT,3/8"-16, GC

24шт.

17

1308668C1

RASP BAR

9шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

18шт.

19

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

18шт.

20

232-4136

LOCK NUT,3/8"-16, GC

18шт.

21

1303038C2

BAR

3шт.

21a

1302103C3

BAR

With Teeth, Optional, Purchase Separately

3шт.

22

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

21шт.

23

231-5146

FLANGE NUT,3/8"-16

21шт.

24

1345307C1

COUPLING

1шт.

25

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

26

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

6шт.

27

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32 x 1-1/2 x 1/8

6шт.

28

183253C3

BAR

Support

3шт.

29

221189A1

SPACER

Spacer

1шт.

30

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

31

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2-1/32 x 2-3/4 x 1/16

1шт.

32

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32 x 2-1/2 x 1/4

1шт.

33

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

34

253439A2

HOUSING

Replaces 1309076C1

1шт.

35

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

36

231-5146

FLANGE NUT,3/8"-16

2шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

41

425-108

NUT,1/2" - 13, Gr 5

3шт.

42

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

1шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

, Serial Range: -JJC0174449

1шт.

44

1979965C1

ROTOR

1шт.

45

1301239C1

BRACKET

1шт.

46

193163C8

SUPPORT

1шт.

47

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

4шт.

48

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

49

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

50

231850A1

BAR

1шт.

51

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

51a

231851A1

DOOR SEAL,828mm L

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

1324208C1

SHIM KIT

Inc. 53

1шт.

53

NSS

NOT SOLD SEPARAT

Shim

28шт.

53

NSS

NOT SOLD SEPARAT

Shim

28шт.

53

NSS

NOT SOLD SEPARAT

Shim

28шт.

53

NSS

NOT SOLD SEPARAT

Shim

28шт.

54

182845C5

SHIELD

1шт.

55

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

56

131-872

SPRING NUT,Ret, 3/8"-16

3/8

3шт.

57

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

3/4 x 1-3/4; 2

1шт.

58

183335C3

SUPPORT

Rotor Rear Bar

3шт.

59

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

60

431729A1

HOSE

Grease, 597 mm (23-1/2 in)

1шт.

61

419744A1

BRACKET

1шт.

62

F53473

LOCK NUT,1/8-27 NPSM

1/8

1шт.

63

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
