Запчасти Case IH 2344 (09B-04) - ROTOR DRIVE - HOUSING, GEAR (14) - ROTOR, CONCANVES & SIEVE

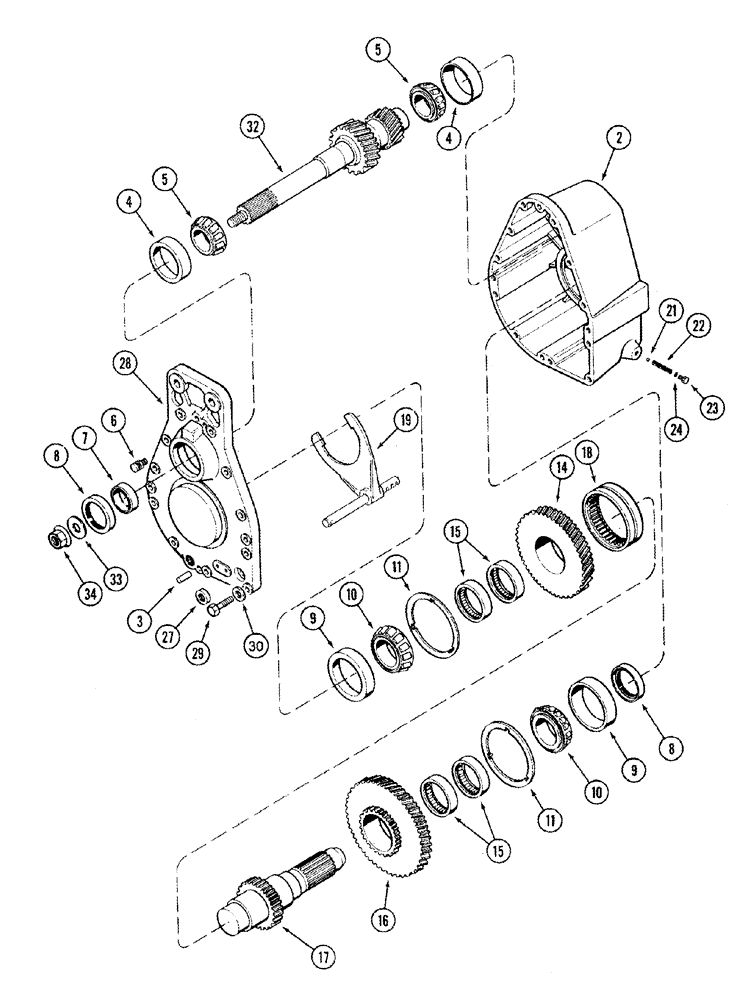

Схема запчастей Case IH 2344 - (09B-04) - ROTOR DRIVE - HOUSING, GEAR (14) - ROTOR, CONCANVES & SIEVE
27
8
11
17
29
10
7
24
4
14
23
16
32
30
22
8
9
34
33
4
19
21
5
28
15
3
15
11
5
6
2
10
9
18

Артикул

Название

Примечание

Количество

1315340C4R

REMAN-ROTOR DRIVE

Remanufactured, N.A. Only

1шт.

1315340C4C

CORE-ROTOR DRIVE

Use To Return Core For Credit

1шт.

1315340C4

HOUSING

Inc. 2 - 34

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

2

194064C91

HOUSING ASSY.

Inc. 3

1шт.

3

37-1820

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4

2шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

2шт.

5

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

2шт.

6

152127H1

BREATHER,1/8"-27, Short

1шт.

7

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

1шт.

8

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

2шт.

9

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

10

13367DC

ROLLER BEARING

2шт.

11

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

2шт.

14

193828C1

PINION

47 T

1шт.

15

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

4шт.

16

193824C1

GEAR

58 T

1шт.

17

194059C1

SHAFT

1шт.

18

194069C1

COLLAR

1шт.

19

100400A1

SHIFTER FORK

1шт.

21

211-1014

BALL,7/16" Dia

24,CRS

1шт.

22

107234C1

SPRING

1шт.

23

129998

PLUG,1/2" - 20 ORB

Inc. 24

1шт.

27

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

1шт.

28

194039C3

COVER

1шт.

29

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

11шт.

30

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

32

1957654C1

SHAFT

1шт.

33

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

57/64 x 1-7/8 x 7/32

1шт.

34

1315288C1

FLANGE NUT

7/8

1шт.

24

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

Выбрано товаров: 31
