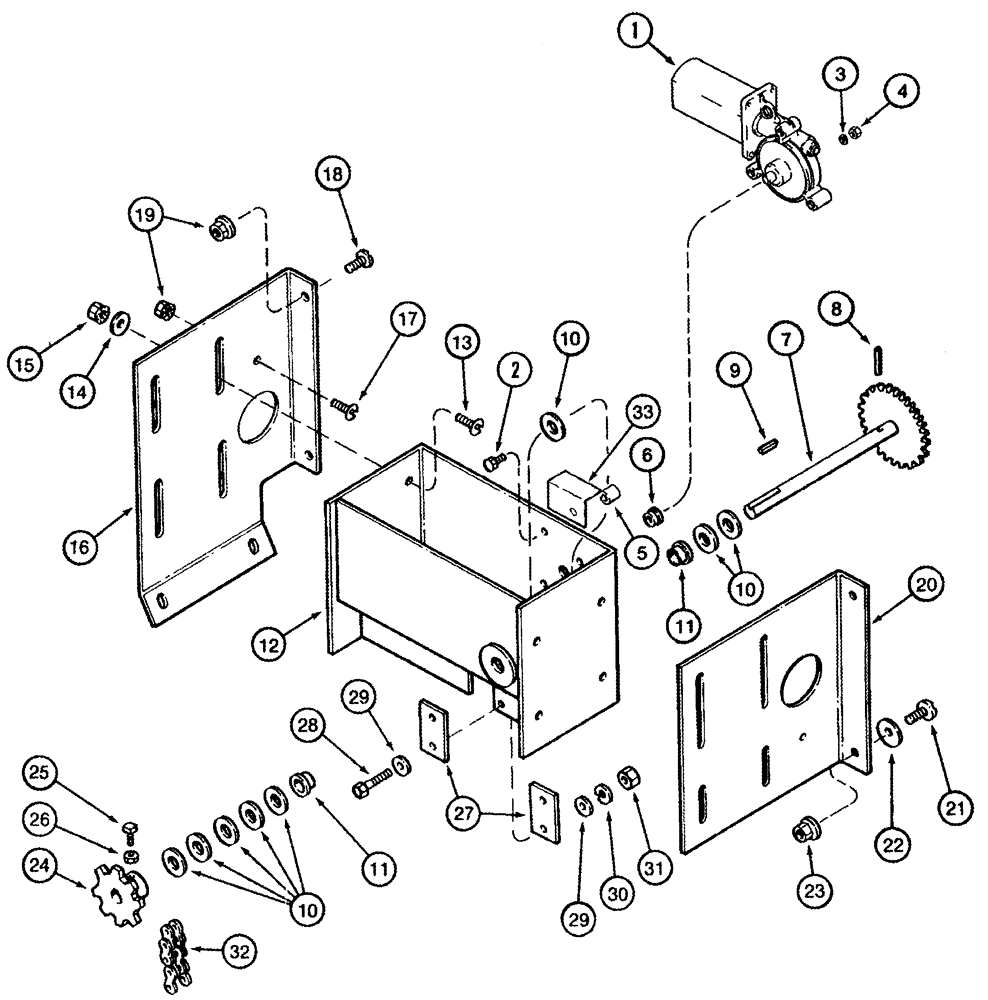

Запчасти Case IH 2344 (09B-03) - ROTOR DRIVE SPEED - ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

111787A2

MOTOR, ELECTRIC

Electric, Variable Speed

1шт.

1

111787A2R

REMAN-ELECTRIC MOTOR

2344 (1/98-1/02)

1шт.

1

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

3

492-11025

LOCK WASHER,1/4"

2шт.

4

425-104

NUT,1/4"-20, Cl 5

2шт.

5

113485A1

SPACER

17 mm

2шт.

6

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

1шт.

7

194338C1

GEAR

1шт.

8

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

5/32" x 1 1/4", Slotted

1шт.

9

Q5024

KEY,3/16" Sq x 1", Par

1шт.

10

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

8шт.

11

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

2шт.

12

183227C2

SUPPORT

1шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

14

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

8шт.

15

231-5146

FLANGE NUT,3/8"-16

8шт.

16

188203C3

SUPPORT

Left Hand

1шт.

17

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

19

231-5146

FLANGE NUT,3/8"-16

6шт.

20

194336C2

SUPPORT

RH

1шт.

22

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

194337C1

SPROCKET

8T

1шт.

25

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Set, 1/4 x 3/4

2шт.

26

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

27

1302173C1

PAD

2шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

617107R91

CHAIN,34 Links x 25.4mm = 863.6mm

Drive, Order 2040 (31), 457113R91 (1), 457114R91 (2)

1шт.

33

199704A1

GUARD

1шт.

21

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
