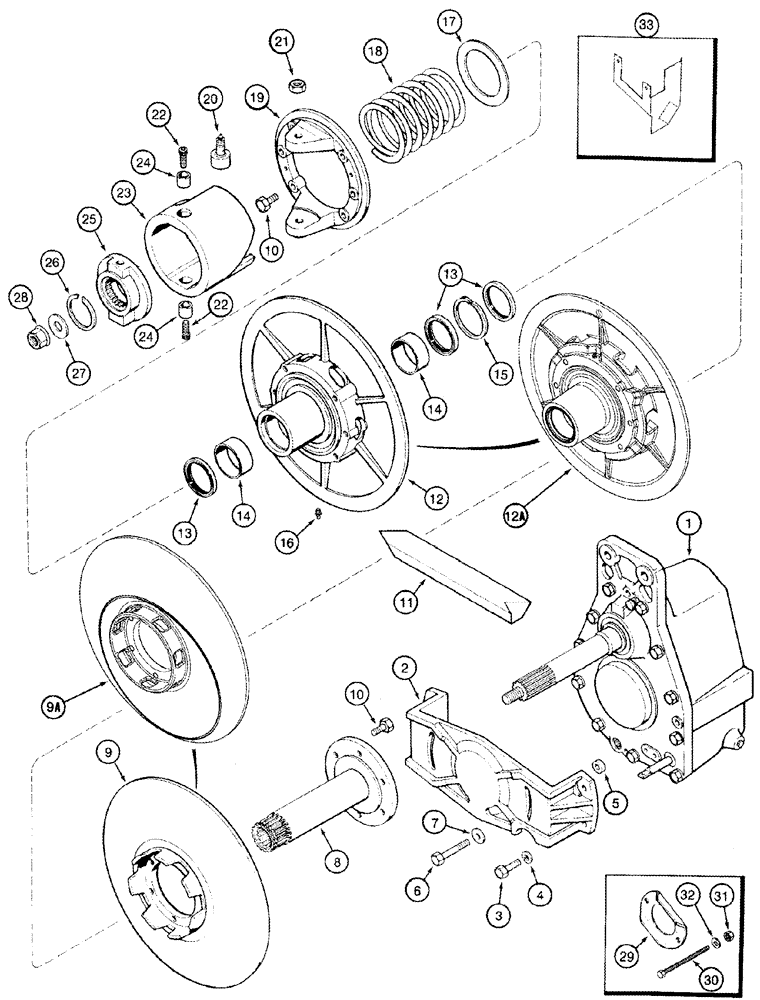

Запчасти Case IH 2344 (09B-02) - ROTOR DRIVE - PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE

1

1315340C4

HOUSING

Gear, See Figure(s) 09B-02 & 09B-04

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

2

194058C1

SUPPORT

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

194077C1

SPACER

2шт.

6

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

7

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

2шт.

8

184489C1

HUB

Machine Forged

1шт.

9

280508A1

PULLEY

Fixed

1шт.

Used with 1315294C7, REF 12

1шт.

9a

310884A1

PULLEY

Fixed, Grooved

1шт.

Used with 310886A1, REF 12A

1шт.

10

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1/2 x 1-1/2; 8

12шт.

11

244420A1

BELT,2134.68 mm L

85 in ov cntr, Serial Range: -JJC0174449

1шт.

11

244420A2

BELT,2113.52 mm L

Seamless, Start Serial: JJC0174450

1шт.

12

1315294C7

PULLEY

Adjustable, Inc. 13 - 16

1шт.

Used with 280508A1, REF 9

1шт.

12a

310886A1

PULLEY

Adjustable, Grooved, Inc. 13 - 16

1шт.

Used with 310884A1, REF 9A

1шт.

13

193965C92

SEAL

3шт.

14

NSS

NOT SOLD SEPARAT

Bushing

2шт.

15

537602R1

RING

1шт.

16

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

Kit, Inc. 13, 14

1шт.

17

1315521C1

THRUST BEARING

1шт.

18

184486C2

SPRING

400#

1шт.

18a

110844A2

SPRING

500#, Not Illustrated

1шт.

19

1315344C2

HUB

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

2шт.

21

425-1110

NUT,5/8"-18, G5

2шт.

22

194167C1

SCREW,5/8 - 11" x 1"

2шт.

246817A2

CAM

Inc. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Cam

1шт.

24

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

2шт.

25

1315297C2

HUB,20T

1шт.

26

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

57/64 x 1-7/8 x 7/32

1шт.

28

1315288C1

FLANGE NUT

7/8

1шт.

29

1315304C3

PLATE

1шт.

30

1319996C3

ROD,Hex, 3/8" -16 x 318mm, Gr 5, W/ Hex Nut

3/8 x 11-1/2 in

2шт.

31

429-106

NUT,3/8"-16, G8

3/8; 8

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

33

239748A1

DEFLECTOR

See Figure Note

1шт.
