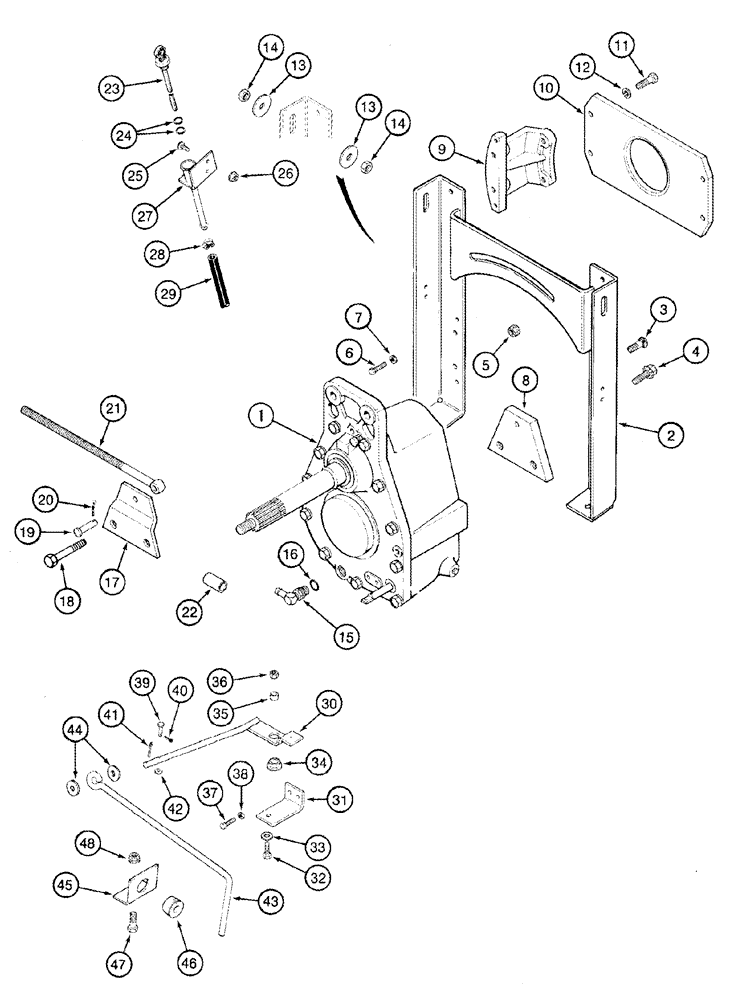

Запчасти Case IH 2344 (09B-01) - ROTOR DRIVE - MOUNTING (14) - ROTOR, CONCANVES & SIEVE

1

1315340C4

HOUSING

See Figure(s) 09B-02 & 09B-04

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed. For N.A. Only

1шт.

1315340C4C

CORE-ROTOR DRIVE

Return Number, For N.A. Only

1шт.

1315328C4

GEARBOX

Gearbox

1шт.

1315328C4R

REMAN-ROTOR DRIVE

Remanufactured, GEAR ASSEMBLY, For N.A. Only

1шт.

1315328C4C

CORE-ROTOR DRIVE

Return Number, For N.A. Only

1шт.

2

1338395C1

SUPPORT ASSY.

1шт.

3

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

188141C1

SUPPORT

1шт.

9

181314C2

BLOCK

2шт.

10

181315C1

PLATE

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

495-81030

WASHER,21/32" x 2" x .179"

21/32 x 2 x 11/64

2шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

Replaces 188272C1

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

282906A1

STRAP

1шт.

18

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

19

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1/2 x 2

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

188143C1

EYEBOLT

1шт.

22

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

3/4 ID x 1-3/4

1шт.

194066C91

DIPSTICK

Inc. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Gauge

1шт.

24

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

193946C1

TUBE,12.7 mm OD

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

29

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

Cut from S118466X

1шт.

30

100398A1

LEVER ASSY.

1шт.

31

100395A1

SUPPORT

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

33

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

34

1979265C1

BUSHING

1шт.

35

1979327C1

SPACER

1шт.

36

231-4116

NUT,3/8"-16, GB

3/8

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

38

492-11031

LOCK WASHER,5/16"

2шт.

39

439-5521

HEADED PIN,5/16" x 1 5/16"

5/16 x 1-5/16

1шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

2шт.

42

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

43

186648C2

ROD

1шт.

44

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

2шт.

45

1979564C1

SUPPORT

1шт.

46

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

2шт.

47

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

48

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
