(02-07) - AIR CLEANER -COBERTURA DO VENTILADOR

Запчасти Case IH 2344 (02-07) - AIR CLEANER -COBERTURA DO VENTILADOR (01) - ENGINE

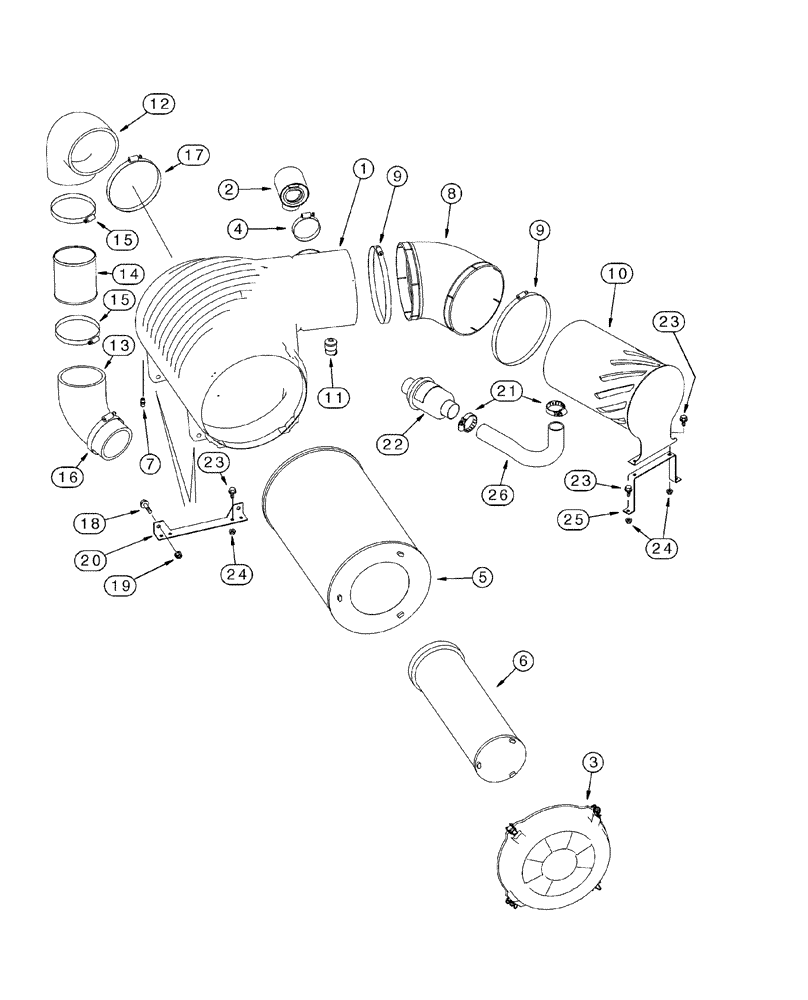

Схема запчастей Case IH 2344 - (02-07) - AIR CLEANER -COBERTURA DO VENTILADOR (01) - ENGINE
2
4
23
13
23
18
15
26
11
25
20
3
16
24
1
8
17
12
21
7
6
5
9
23
22
9
14
19
24
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

275284A2

AIR CLEANER

Air Cleaner Assy Consists Of : 1 - 11

1шт.

1

243966A3

AIR CLEANER

Body Includes : 2 - 7

1шт.

2

249788A1

VALVE

Valve, Check

1шт.

3

259988A1

FILTER COVER

Cover

1шт.

3a

371266A1

LATCH

Includes Hardware, Not Illustrated

1шт.

4

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

5

243968A1

ELEMENT

Filter, Air Primary

1шт.

6

243969A1

ELEMENT

Filter, Air Secondary

1шт.

7

D36264

FITTING

Adapter

1шт.

8

259995A1

ELBOW

Elbow Intake

1шт.

9

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

2шт.

10

259993A1

PRECLEANER

Precleaner

1шт.

11

279492A1

RESTRICTION SWITCH

Switch Air Restriction

1шт.

259352A2

HOSE ASSY.

Hose Assy Consists 12 - 15 Replaces : 259352A1 AIR INDUCTION SYSTEM

1шт.

12

277091A2

LARGE HOSE

HOSE,LARGE Hose Turbo Inlet Upper Replaces : 277091A1 AIR INDUCTION SYSTEM

1шт.

13

277092A1

LARGE HOSE

HOSE,LARGE Hose Turbo Inlet Lower AIR INDUCTION SYSTEM

1шт.

14

277096A1

AIR INTAKE TUBE,125.5 mm ID, 130.6 mm OD, 139.7 mm Length

Tube AIR INDUCTION SYSTEM

1шт.

15

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

Air Induction System

2шт.

16

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

Air Induction System

1шт.

17

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

Air Induction System

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

Bolt, Flange 3/8 x 2 AIR INDUCTION SYSTEM

4шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

Air Induction System

4шт.

20

258967A1

SUPPORT

Bracket AIR INDUCTION SYSTEM

2шт.

21

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Air Induction System

2шт.

22

245976A1

VENT

Valve, Check AIR INDUCTION SYSTEM

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Air Induction System

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Air Induction System

6шт.

25

278443A1

SUPPORT

Bracket AIR INDUCTION SYSTEM

1шт.

26

255062A2

HOSE

Hose 290 mm (11-3/8 in), Precleaner to Check Valve AIR INDUCTION SYSTEM

1шт.
