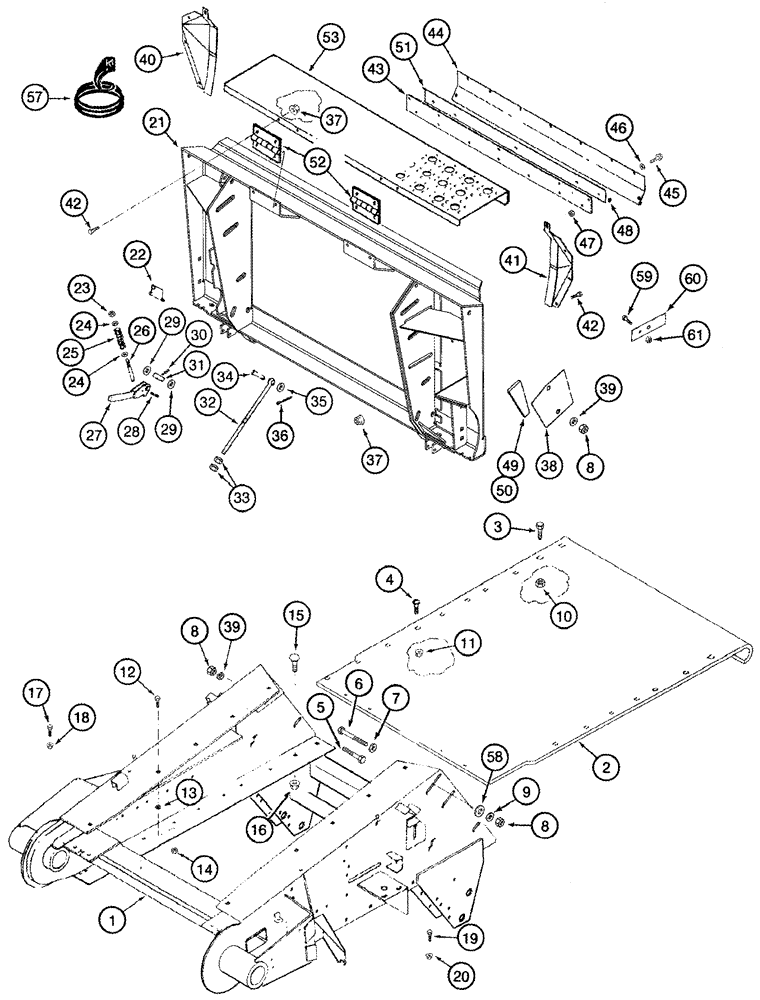

Запчасти Case IH 2344 (09A-18) - FEEDER - HOUSING AND ADAPTER - BSN JJC0174399 (13) - FEEDER

1

239801A2

HOUSING

Inc. Decal, See Figure(s) 09H-20 REF 2; 09H-21, REF 9

1шт.

With 60 Inch Feeder

1шт.

1

239800A2

HOUSING

Inc. Decal, See Figure(s) 09H-20, REF 2; 09H-21, REF 9

1шт.

With 54-1/2 Inch Feeder

1шт.

2

1994217C2

SHEET

Not Perforated

1шт.

With 60 Inch Feeder

1шт.

2

118845A1

BOTTOM

Perforated

1шт.

With 60 Inch Feeder

1шт.

2

1324578C2

PLATE

1шт.

With 54-1/2 Inch Feeder

1шт.

2

1313970C1

PANEL

Perforated

1шт.

With 54-1/2 Inch Feeder

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4; 8

4шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4

2шт.

6

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4

4шт.

7

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

21/32 x 1-1/4 x 1/16

6шт.

8

231-14410

NUT,5/8"-11, GB

6шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

10

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

4шт.

11

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8-10шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

4шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

3шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

241769A2

ADAPTER

Australia Only

1шт.

22

1338021C1

PIN,7.94mm OD

2шт.

23

231-1445

NUT,5/16"-18, GB

2шт.

24

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

25

367833R1

SPRING

2шт.

26

177138C1

ROD

2шт.

27

179024C1

HINGE

2шт.

28

38-1816

LOCK PIN,1/8" x 1", Slotted

1/8" x 1", Slotted

2шт.

29

495-81175

WASHER,21/32" x 1" x .120"

21/32 x 1 x 7/64

4шт.

30

38-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

31

177141C1

PIN,15.88mm OD x 41mm L

2шт.

32

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

2шт.

33

329-108

NUT,1/2"-13, G8

4шт.

34

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

1/2 x 2-1/4

2шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

36

432-1216

COTTER PIN,3/16" x 1"

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

38

1327737C2

PLATE

2шт.

39

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

21/32 x 2-1/2 x 1/8

2шт.

40

184853C1

DEFLECTOR

Left Hand

1шт.

41

184854C1

DEFLECTOR

Right Hand

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

43

1319474C1

BAND

1шт.

44

1319479C1

COVER

1шт.

45

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

46

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

5шт.

46

495-81001

WASHER,5/16"

3/8 x 1-1/8 x 1/16

7шт.

47

232-4115

LOCK NUT,5/16"-18, GC

5шт.

47

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

7шт.

48

1321640C1

GROMMET

2шт.

49

1327752C1

FOAM INSULATION

Left Hand

1шт.

50

1327753C1

FOAM INSULATION

Right Hand

1шт.

51

109253A1

LARGE PLATE

PLATE, LARGE Cut From 1330108CX

1шт.

52

140767A2

HINGE

2шт.

53

140768A4

STEP

1шт.

54

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

2шт.

55

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

57

126046A1

GASKET,287.02mm L

292 mm (11-1/2 in), Cut From 1330108CX

2шт.

58

495-81030

WASHER,21/32" x 2" x .179"

21/32 x 2 x 11/64

4шт.

59

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

3/8 x 1/2

4шт.

60

249827A1

COVER

4шт.

61

425-106

NUT,3/8"-16, Cl 5

4шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

8-10шт.
