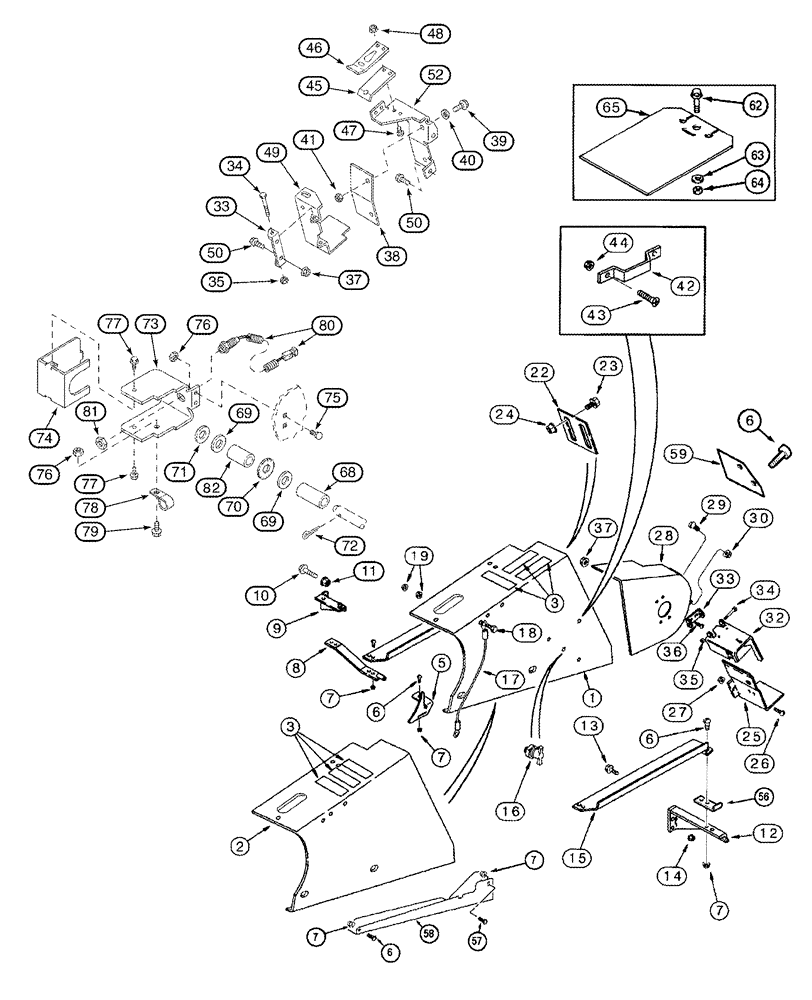

Запчасти Case IH 2344 (09A-17) - FEEDER - SHIELDS, JACKSHAFT DRIVE - ASN JJC0174400 (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
390383A1
SHIELD
Rear, Inc. 3, Inc. Decal, See Figure(s) 09H-21, REF 4
1шт.
With 60 Inch Feeder
1шт.
2
390390A1
SHIELD
Rear, Inc. 3, Inc. Decal, See Figure(s) 09H-21, REF 4
1шт.
With 54-1/2 Inch Feeder
1шт.
3
D55216
PAD,2" x 9"
2 x 9 in
3шт.
5
186675A2
GUARD
1шт.
6
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
7
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
8
1321851C2
SUPPORT
Lower Rear
1шт.
9
1327779C1
SUPPORT
Upper Rear
1шт.
10
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 x 3/4
2шт.
11
231-5146
FLANGE NUT,3/8"-16
2шт.
12
1321853C2
SUPPORT
Lower Front
1шт.
13
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
15
139079A2
SUPPORT
Rear
1шт.
16
138699A1
LOCK
1шт.
17
132657A2
CABLE
1шт.
18
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
20
138629A1
COVER
LH, Australia Only, Not Illustrated
1шт.
21
138179A3
LATCH
Australia Only, Not Illustrated
2шт.
22
139108A1
PLATE
1шт.
23
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
6шт.
24
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
25
129901A2
GUARD
Right Hand Rear
1шт.
27
231-5146
FLANGE NUT,3/8"-16
2шт.
28
129707A4
SHIELD
Front
1шт.
29
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
30
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
32
129714A2
GUARD
Right Hand Front
1шт.
33
1345199C2
SUPPORT
2шт.
34
413-472
BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5
1/4 x 4-1/2
2шт.
35
231-4144
NUT,1/4"-20, GB
2шт.
37
231-5146
FLANGE NUT,3/8"-16
2шт.
38
406610A1
SHIELD
1шт.
39
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
2шт.
40
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
2шт.
41
231-4116
NUT,3/8"-16, GB
3/8
2шт.
42
160638C2
HANDLE
1шт.
43
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2
2шт.
44
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
45
407153A1
GUIDE
1шт.
46
138179A3
LATCH
1шт.
47
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
48
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
49
406609A1
SHIELD
LH Rear
1шт.
50
409-7612
BOLT,3/8"-16 x 1.09" OAL
4шт.
52
406608A1
SHIELD
LH Front
1шт.
56
235885A1
SUPPORT
1шт.
57
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2
2шт.
58
235873A1
SHIELD
Lower
1шт.
With 54-1/2 Inch Feeder
1шт.
58
235874A1
SHIELD
Lower
1шт.
With 60 Inch Feeder
1шт.
59
138629A1
COVER
Not Illustrated
1шт.
62
409-7612
BOLT,3/8"-16 x 1.09" OAL
Australia Only
2шт.
63
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64), Australia Only
2шт.
64
231-4116
NUT,3/8"-16, GB
3/8, Australia Only
2шт.
65
138180A1
COVER
Australia Only
1шт.
66
248406A1
GUARD
Rubber, Not Illustrated
1шт.
67
252441A1
SEAL RETAINER
Not Illustrated
1шт.
68
584608R1
SPACER
86 mm (3-3/8 in)
1шт.
69
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
1-3/4 x 2-1/2 x 1/8
7шт.
70
390532A1
PLATE
1шт.
Without Rock Trap
1шт.
71
495-81092
WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk
1-25/32 x 2-1/2 x 3/64
1шт.
72
432-2440
COTTER PIN,3/8" x 2 1/2"
3/8" x 2 1/2", Serial Range: -JJC0174449
1шт.
72
38-12440
LOCK PIN,3/8" x 2 1/2", Slotted
Spring, Start Serial: JJC0174450
1шт.
73
392857A2
BRACKET
1шт.
Without Rock Trap
1шт.
74
392858A2
SHIELD
1шт.
Without Rock Trap
1шт.
75
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
2шт.
76
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
78
516-2395
CLAMP,J, 7/16" Insul, 3/8" Bolt
1шт.
79
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
2шт.
80
REF
INSTRUCTION
Sensor, Feeder Speed, See Figure(s) 04-01
1шт.
81
425-1512
JAM NUT,Jam, 3/4"-10, G5
3/4 NF
1шт.
82
1305393C1
SPACER
2-35/64
1шт.
26
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
2шт.
36
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
4шт.
Выбрано товаров: 83
