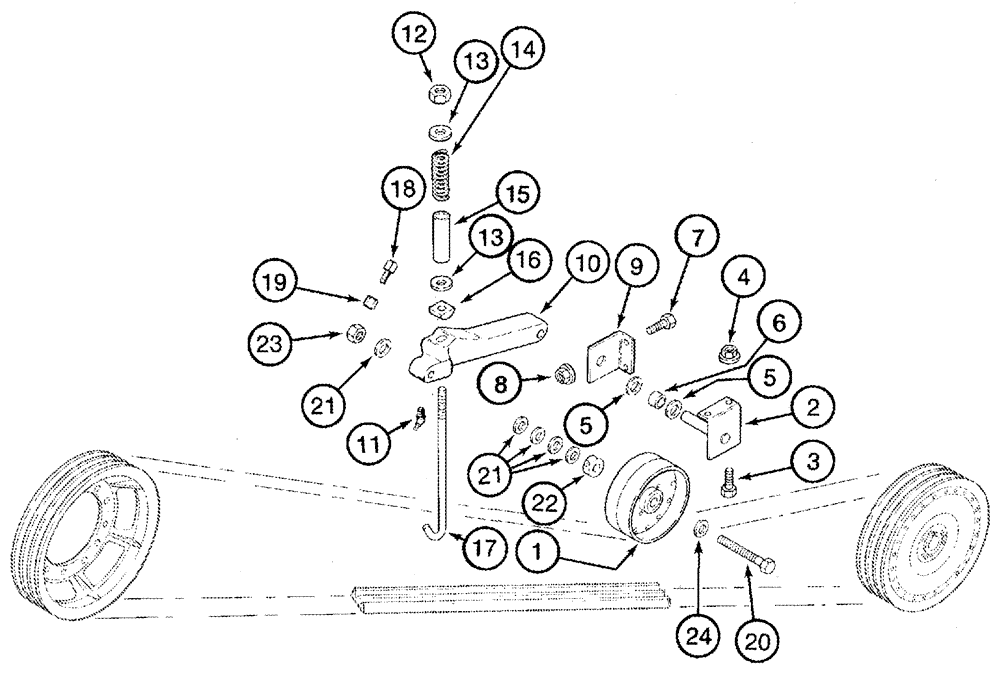

Запчасти Case IH 2344 (09A-14) - FEEDER - JACKSHAFT IDLER PIVOT - BSN JJC0174399 (13) - FEEDER

1

176579C1

IDLER

8 in OD, Drive Tightener

1шт.

2

182322C1

SUPPORT

1шт.

3

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1-1/32 x 1-1/2 x 1/16

1шт.

6

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.

7

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

182323C1

SUPPORT

1шт.

10

1321982C2

ARM

1шт.

11

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

1шт.

13

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

17/32 x 1-3/4 x 3/32

2шт.

14

PO3A

SPRING

1шт.

15

176581C1

SPACER

1шт.

16

194652C1

PIVOT

1шт.

17

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

1шт.

18

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

19

425-105

NUT,5/16"-18, G5

2шт.

20

135260A1

BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5

5/8 x 5

1шт.

21

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

41/64 x 1-1/4 x 1/8

5шт.

22

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

17 x 35 x 15 mm

1шт.

23

232-41110

NUT,5/8"-11, GC

1шт.

24

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

1шт.
