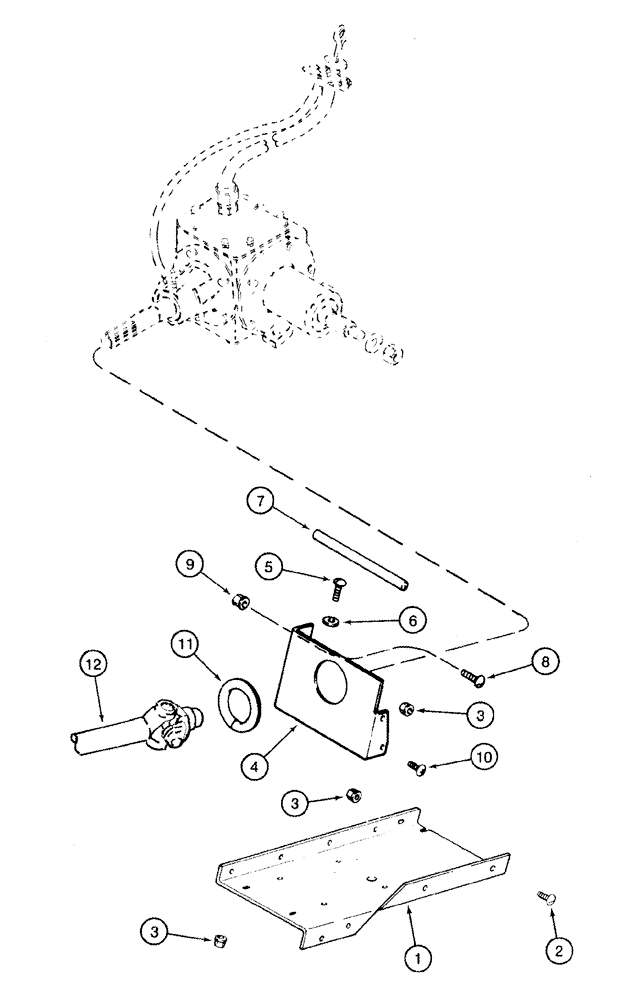

Запчасти Case IH 2344 (09A-09) - FEEDER - MOUNTING, DRIVE AND FAN GEAR (13) - FEEDER

1

194521C1

SUPPORT

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

3

231-5146

FLANGE NUT,3/8"-16

6шт.

4

191399C2

SUPPORT

1шт.

6

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

4шт.

7

191497C1

SEALING STRIP

270 mm (10-5/8 in)

1шт.

8

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

2шт.

9

231-5146

FLANGE NUT,3/8"-16

7шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

5шт.

11

191496C1

SEALING STRIP

300 mm (11-7/8 in)

1шт.

12

191595C91

JOINT ASSY.

See Figure(s) 09A-03

1шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
