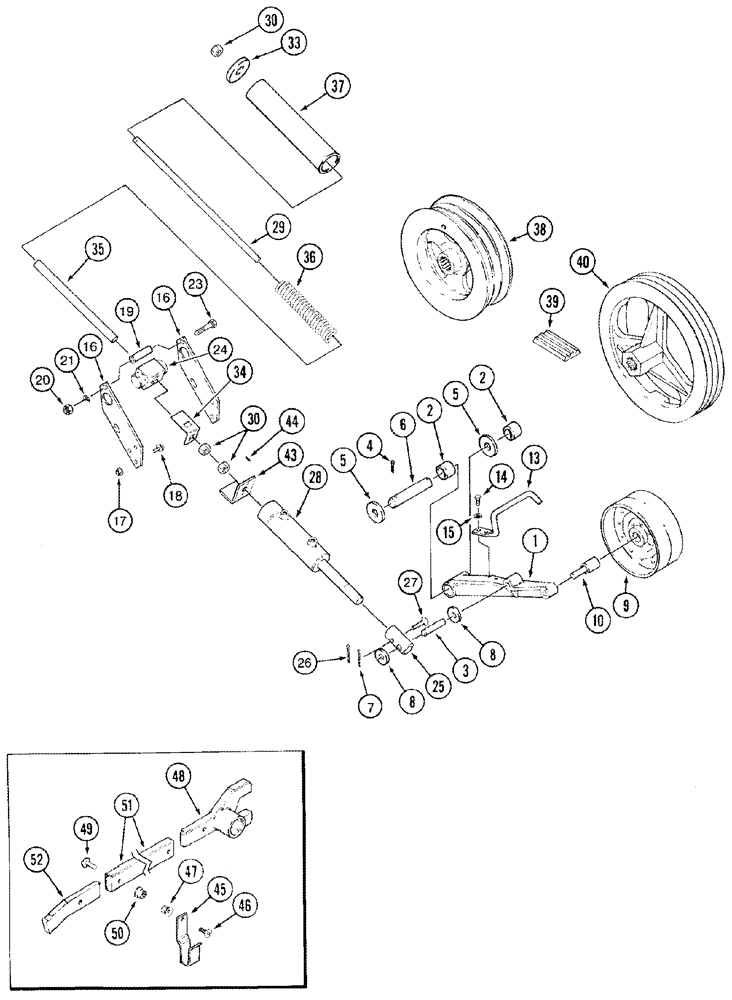

Запчасти Case IH 2344 (09A-06) - SEPARATOR - DRIVE PULLEY AND IDLER (13) - FEEDER

1

195457C93

LEVER

Inc. 2, 3

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1 x 1-1/4 x 1-1/8

2шт.

3

195459C2

PIN

1шт.

4

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

5

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

1-1/32 x 1-3/4 x 1/16

7шт.

6

1315229C2

PIN,25.4mm OD x 135mm L

1шт.

7

432-1216

COTTER PIN,3/16" x 1"

1шт.

8

495-81176

WASHER,21/32" x 1" x .060"

21/32 x 1 x 3/64

2шт.

9

174757C1

PULLEY

8 in OD, Idler

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

1шт.

13

193284C1

ROD

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

125380A1

SUPPORT

2шт.

17

231-5146

FLANGE NUT,3/8"-16

6шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

19

196676C1

SPACER

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2

1шт.

24

186747C3

PIVOT

1шт.

25

125381A1

TUBE,25.4 mm ID, 34.92 mm OD

1шт.

26

432-612

COTTER PIN,3/32" x 3/4"

1шт.

27

427-6178

CLEVIS PIN,9.53mm OD x 45.24mm L

1шт.

28

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

51 ID x 318 mm strk, Separator Clutch, See Figure(s) 08-31 (01)

1шт.

29

1303058C1

ROD

1шт.

30

425-1010

NUT,5/8"-11, G5

3шт.

33

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

21/32 x 2 x 7/64

1шт.

34

186748C1

BRACKET

1шт.

35

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

1шт.

36

186745C1

SPRING

1шт.

37

186746C1

TUBE

1шт.

38

191461C1

PULLEY,110mm OD

11 in OD, Drive See Figure(s) 06-01

1шт.

39

191241C3

BELT,22.33 mm W x 3302.69 mm L

Over center

1шт.

40

191452C2

PULLEY

14-3/4 in OD, Driven

1шт.

40

191452C2

PULLEY

14-3/4 in OD, Driven

1шт.

43

186749C1

BRACKET

1шт.

44

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

45

1979908C1

CLIP

2шт.

46

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

48

1979527C1

WRENCH-HOOK

1шт.

49

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

50

231-5146

FLANGE NUT,3/8"-16

2шт.

51

1979526C2

HANDLE

1шт.

52

1979751C2

BAR

1шт.
