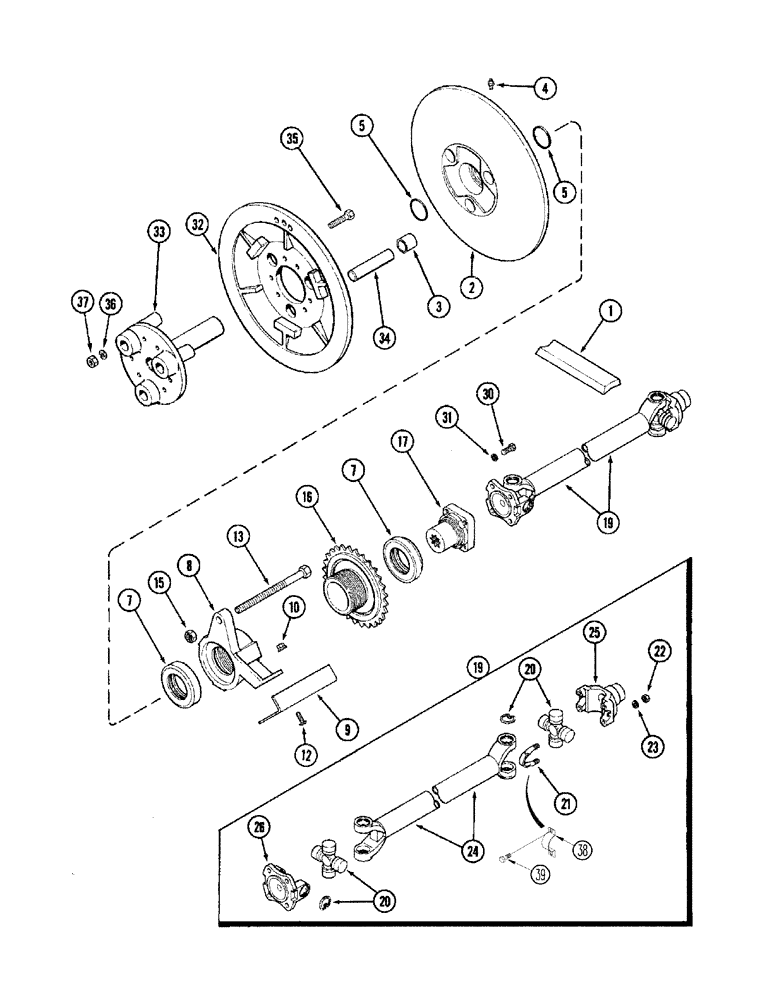

Запчасти Case IH 2344 (09A-03) - SEPARATOR - JACKSHAFT DRIVE (13) - FEEDER

1

244420A1

BELT,2134.68 mm L

85 in ov cntr, Serial Range: -JJC0174449

1шт.

1

244420A2

BELT,2113.52 mm L

Seamless, Start Serial: JJC0174450

1шт.

2

1330054C1

PULLEY

17-1/2 OD, Rotor Drive Variable, Inc. 3

1шт.

3

194665C1

BUSHING

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

5

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

7

278927A1

THRUST BEARING,69.84mm ID x 113.79mm OD x 22.1mm W

2шт.

8

194394C1

HUB

1шт.

9

188309C3

SUPPORT

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

13

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9, Replaces 413-12152

1шт.

15

329-1412

JAM NUT,Jam, 3/4"-10, G8

1шт.

16

194464C2

SPROCKET

25T

1шт.

17

191542C2

SPLINED COUPLING,12T

, Serial Range: -JJC0174449

1шт.

17

411042A1

SPLINED COUPLING,20T

, Start Serial: JJC0174450

1шт.

19

413828A1

SHAFT ASSY.

Inc. 20 - 26

1шт.

20

1300502C1

KIT

1шт.

21

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

NSS

NOT SOLD SEPARAT

Shaft

1шт.

25

NSS

NOT SOLD SEPARAT

Yoke

1шт.

26

NSS

NOT SOLD SEPARAT

Flange

1шт.

30

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7/16 x 1-1/4; 8

4шт.

31

492-11044

LOCK WASHER,7/16"

4шт.

32

188848C1

PULLEY

17-1/2 in OD

1шт.

33

188846C2

HUB

Inc. 34, Serial Range: -JJC0174449

1шт.

33

411046A1

HUB

Inc. 34, Start Serial: JJC0174450

1шт.

34

191544C2

PIN,28.48mm OD x 127mm L

3шт.

35

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

36

392-21050

LOCK WASHER,1/2"

1/2"

6шт.

37

329-108

NUT,1/2"-13, G8

6шт.

38

D137626

CLAMP,30.175mm D Clamping Pipe

Bearing, Start Serial: JJC0174450

2шт.

39

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

5/16-24, Start Serial: JJC0174450

4шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
