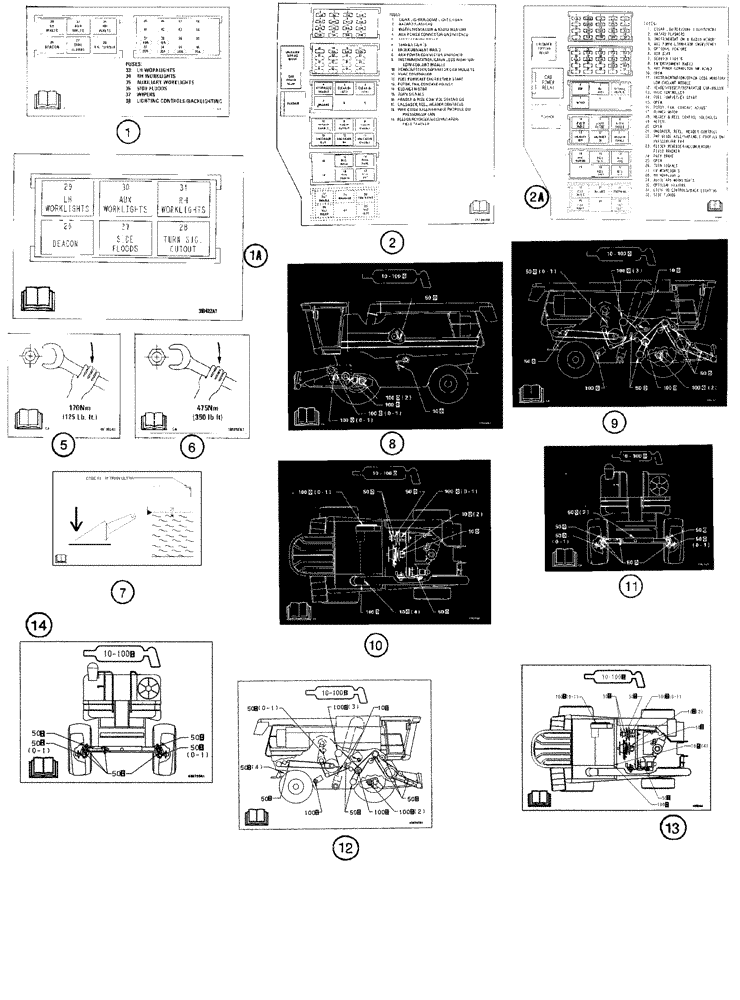

Запчасти Case IH 2344 (09H-22[01]) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL (12) - CHASSIS

1

177343A1

DECAL

Upper Fuse and Relay, English, Serial Range: -JJC0174259

1шт.

1a

319422A1

DECAL

Upper Relay, English JJC0174260 to

1шт.

1

177344A1

DECAL

Upper Fuse and Relay, French, Serial Range: -JJC0174259

1шт.

1a

319423A1

DECAL

Upper Relay, French JJC0174260 to

1шт.

1

177345A1

DECAL

Upper Fuse and Relay, Spanish, Serial Range: -JJC0174259

1шт.

1a

319424A1

DECAL

Upper Relay, Spanish, Start Serial: JJC0174260

1шт.

1

278576A1

DECAL

Upper Fuse and Relay, Portuguese, Serial Range: -JJC0174259

1шт.

1a

319426A1

DECAL

Upper Relay, Portuguese JJC0174260 to

1шт.

2

276606A2

DECAL

Lower Fuse and Relay, English, Use With 276603A2, Serial Range: -JJC0174259

1шт.

2a

319428A1

DECAL

Lower Fuse and Relay, English, Use With 315073A1, Not Illustrated, Serial Range: JJC0174260-JJC0174359

1шт.

2b

371281A1

DECAL

Lower Fuse and Relay, English, Use With 370779A1, Not Illustrated, Serial Range: JJC0174360-JJC0174399

1шт.

2c

392896A1

DECAL

Lower Fuse and Relay, English, Use With 370779A1, Not Illustrated, Start Serial: JJC0174400

1шт.

2

276607A2

DECAL

Lower Fuse and Relay, French, Use With 276603A2, Serial Range: -JJC0174259

1шт.

2a

319429A1

DECAL

Lower Fuse and Relay, French, Use With 315073A1 JJC0174260, Serial Range: -JJC0174359

1шт.

2b

371282A1

DECAL

Lower Fuse and Relay, French, Use With 370779A1, Not Illustrated, Serial Range: JJC0174360-JJC0174399

1шт.

2c

392897A1

DECAL

Lower Fuse and Relay, French, Use With 370779A1, Not Illustrated JJC0174400 to

1шт.

2

276608A2

DECAL

Lower Fuse and Relay, Spanish, Use With 276603A2, Serial Range: -JJC0174259

1шт.

2a

319430A1

DECAL

Lower Fuse and Relay, Spanish, Use With 315073A1 JJC0174260, Serial Range: -JJC0174359

1шт.

2b

371283A1

DECAL

Lower Fuse and Relay, Spanish, Use With 370779A1, Not Illustrated JJC0174360, Serial Range: -JJC0174399

1шт.

2c

392901A1

DECAL

Lower Fuse and Relay, Spanish, Use With 370779A1, Not Illustrated, Start Serial: JJC0174400

1шт.

2

279796A2

DECAL

Lower Fuse and Relay, Portuguese, Use With 276603A2, Serial Range: -JJC0174259

1шт.

2a

319432A1

DECAL

Lower Fuse and Relay, Portuguese, Use With 315073A1 JJC0174260, Serial Range: -JJC0174359

1шт.

2b

371285A1

DECAL

Lower Fuse and Relay, Portuguese, Use With 370779A1, Not Illustrated JJC0174360, Serial Range: -JJC0174399

1шт.

2c

392899A1

DECAL

Lower Fuse and Relay, Portuguese, Use With 370779A1, Not Illustrated, Start Serial: JJC0174400

1шт.

5

181992A1

DECAL

Without Power Guide Axle System

2шт.

6

181917A2

DECAL

With Power Guide Axle System

2шт.

7

401533A1

DECAL

Hydraulic Oil Level

1шт.

8

179620A2

DECAL

Lubrication Chart, Left Hand

1шт.

9

179621A2

DECAL

Lubrication Chart, Right Hand

1шт.

10

179622A2

DECAL

Lubrication Chart, Upper

1шт.

11

179623A2

DECAL

Lubrication Chart, Rear

1шт.

12

435797A1

DECAL

Lubrication Chart, Right-Hand, Start Serial: JJC0174450

1шт.

13

435798A1

DECAL

Lubrication Chart, Upper, Start Serial: JJC0174450

1шт.

14

435799A1

DECAL

Inclined Delivery Auger Elevator, Start Serial: JJC0174450

1шт.

426155A1

KIT

Sieve Lighting / Viewing Door, Inc. 8, See Figure(s) 04-16, 09H-02, 09H-23

1шт.

Used to retrofit machines built Prior to P.I.N. JJC0174359

1шт.
