Запчасти Case IH 2344 (09H-15) - PLATFORM, OPERATORS - LEFT HAND - ASN JJC0174260 (12) - CHASSIS

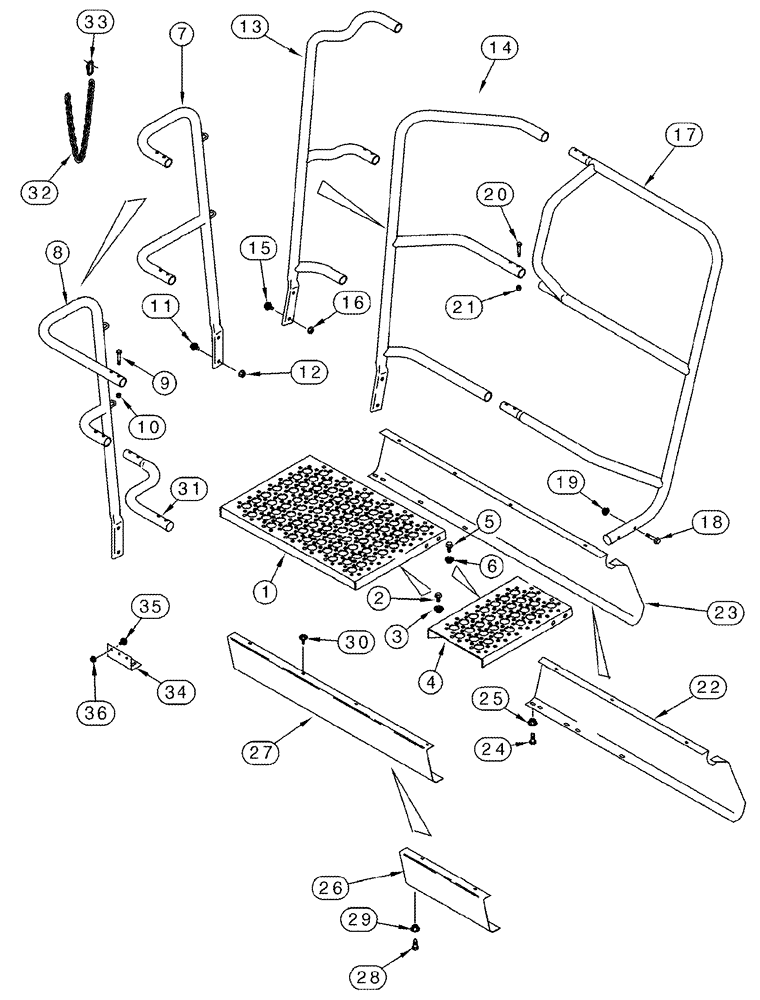

Схема запчастей Case IH 2344 - (09H-15) - PLATFORM, OPERATORS - LEFT HAND - ASN JJC0174260 (12) - CHASSIS
7
25
33
30
6
17
26
31
9
12
2
34
35
18
10
19
23
24
1
15
20
3
32
27
11
14
36
28
8
5
21
22
4
16
13
29

Артикул

Название

Примечание

Количество

1

142163A2

PLATFORM

30 in

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

124315A1

STEP

10 in

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

324257A1

GRAB RAIL

30 in, Rear

1шт.

8

324256A1

HANDRAIL

40 in, Rear

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4-6шт.

10

231-1445

NUT,5/16"-18, GB

4-6шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

324261A1

GRAB RAIL

30 in, Front

1шт.

14

324258A1

HANDRAIL

40 in, Front

1шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

141579A3

HANDRAIL

Front

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

3/8 x 2

2шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

21

231-1445

NUT,5/16"-18, GB

6шт.

22

183369A2

CHANNEL

1шт.

23

127721A2

PROTECTION PLATE

40 in

1шт.

24

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

26

326939A1

CHANNEL

30 in, Left Hand Rear

1шт.

27

326938A1

CHANNEL

40 in, Left Hand Rear

1шт.

28

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

1шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

30

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

5-8шт.

31

182282A1

TUBE,33.35 mm OD

Center

1шт.

32

324546A1

CHAIN,628mm L

2шт.

33

326376A2

LINK

Ladder Chain

4шт.

34

141049A2

SUPPORT

2шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

Выбрано товаров: 36
