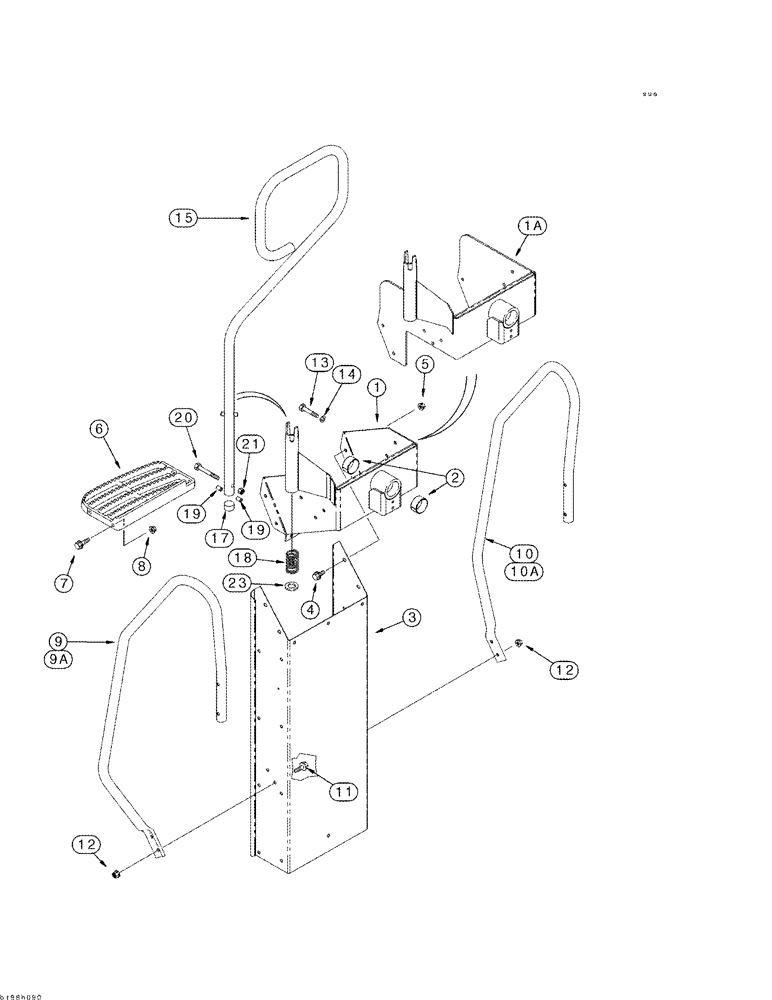

Запчасти Case IH 2344 (09H-12) - LADDER, OPERATORS - BSN JJC0174259 (12) - CHASSIS

1

193980A3

SUPPORT

Inc. 2

1шт.

1a

318683A1

SUPPORT

Inc. 2

1шт.

Used with 18.42R 42R1 Dual Tires Only

1шт.

2

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

3

125495A1

CHASSIS

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

97050C3

STEP

5шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

20шт.

8

231-5146

FLANGE NUT,3/8"-16

20шт.

9

182683A1

RAMP

Right Hand

1шт.

9a

318922A1

COLUMN JACKET

Right Hand

1шт.

Used with 18.42R 42R1 Dual Tires Only

1шт.

10

182682A1

RAMP

Left Hand

1шт.

10a

318923A1

COLUMN JACKET

Left Hand

1шт.

Used with 18.42R 42R1 Dual Tires Only

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

12

231-5146

FLANGE NUT,3/8"-16

8шт.

13

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

1шт.

14

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

15

254208A4

TUBE,150, 130 mm Length

1шт.

17

298726A1

PLASTIC PLUG

1шт.

18

182339A2

SPRING

1шт.

19

1277909C1

SPACER

2шт.

20

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4; 5

1шт.

21

231-1445

NUT,5/16"-18, GB

1шт.

23

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

1шт.
