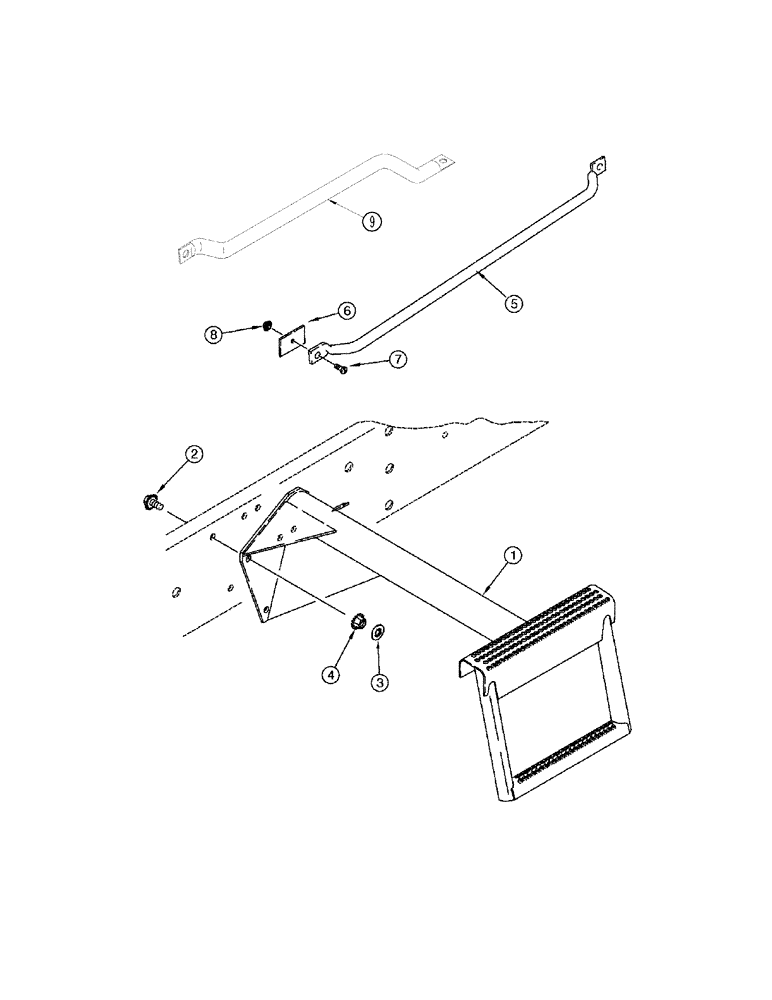

Запчасти Case IH 2344 (09H-11) - LADDER - RADIATOR ACCESS (12) - CHASSIS

1

142906A3

STEP

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

143775A2

HANDRAIL

, Serial Range: -JJC0174449

1шт.

6

183380A1

PLATE

, Serial Range: -JJC0174449

2шт.

6

418690A1

PLATE

, Start Serial: JJC0174450

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

414004A1

HANDRAIL

, Start Serial: JJC0174450

1шт.
