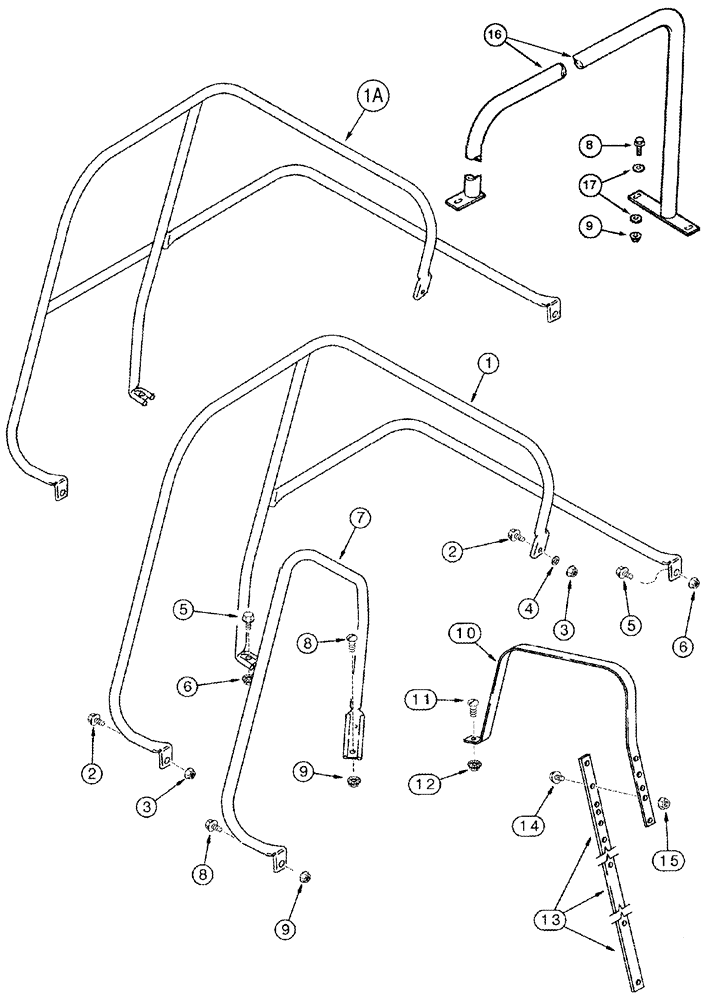

Запчасти Case IH 2344 (09H-10) - HAND RAILS - DECK, SERVICE (12) - CHASSIS

1

140196A2

GRAB RAIL

Left Hand, No Longer Available, Order 356330A1

1шт.

1a

356330A1

HANDRAIL

Left Hand

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

7

140201A1

RAMP

Right Hand

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

10

1338059C2

RAIL

1шт.

11

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

3шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

13

1338058C3

BAR

1шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

3179828R1

RAIL ASSY.

Australia Only

1шт.

17

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.
