Запчасти Case IH 2344 (09H-08) - DEFLECTORS - SUPPORTS (12) - CHASSIS

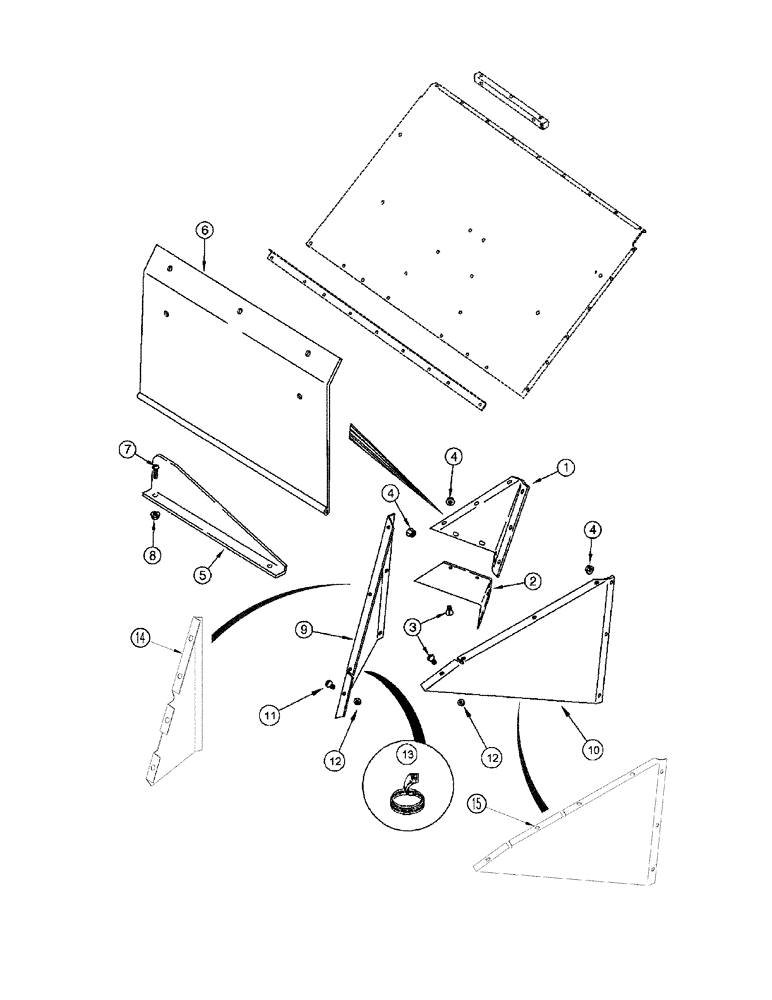

Схема запчастей Case IH 2344 - (09H-08) - DEFLECTORS - SUPPORTS (12) - CHASSIS
7
12
12
15
11
9
2
14
8
1
3
4
13
6
4
10
5
4

Артикул

Название

Примечание

Количество

1

1319485C1

DEFLECTOR

1шт.

With Straw Spreader

1шт.

2

1321019C1

DEFLECTOR

1шт.

With Straw Spreader

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

5

115497A1

DEFLECTOR

1шт.

With Straw and Chaff Spreader

1шт.

6

115498A3

DEFLECTOR

1шт.

With Straw and Chaff Spreader

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

9

1302105C2

DEFLECTOR

Left Hand, Serial Range: -JJC0174399

1шт.

9

1302105C3

SUPPORT

Left Hand, Serial Range: JJC0174399-JJC0174449

1шт.

10

1302106C2

DEFLECTOR

Right Hand, Serial Range: -JJC0174399

1шт.

10

1302106C3

SUPPORT

Right Hand, Serial Range: JJC0174400-JJC0174449

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

10шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

13

1545944C1

SEAL

127 mm (5 in), Cut From 1330108CX

1шт.

14

412001A1

SUPPORT

Left-Hand, Start Serial: JJC0174450

1шт.

15

412002A1

SUPPORT

Right-Hand, Start Serial: JJC0174450

1шт.

Выбрано товаров: 21
