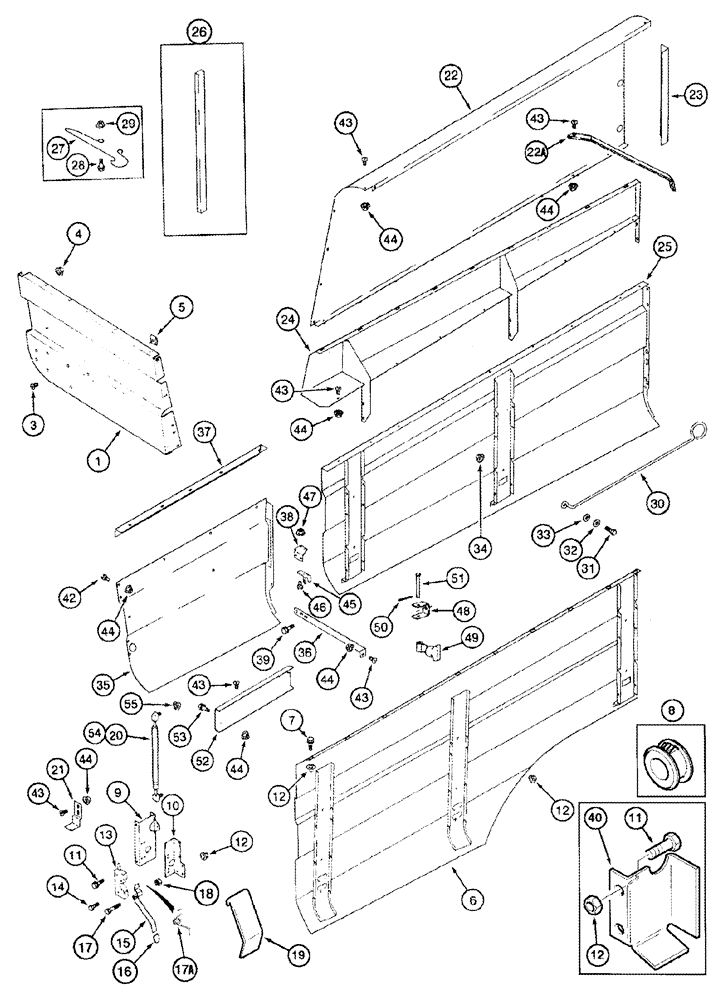

Запчасти Case IH 2344 (09H-06) - DOOR - SHIELDS - LEFT HAND (12) - CHASSIS

Left Hand

1шт.

1

104148A4

SUPPORT

Inc. Decal, See Figure(s) 09H-21, REF 16, Serial Range: -JJC0174399

1шт.

1

403280A1

SUPPORT

Inc. Decal, See Figure(s) 09H-21, REF 16, Start Serial: JJC0174400

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

5

488837C1

SPRING NUT

5/16

3шт.

6

139776A5

DOOR ASSY.

Left Hand Front

1шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

8

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

Australia Only

1шт.

9

175605A2

SUPPORT

Lower

1шт.

10

139680A3

SUPPORT

Lower Left Hand

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

13

141224A1

LATCH

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

182204A1

LEVER

1шт.

16

176203A2

PROTECTOR

If Used

1шт.

17

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

17a

284171A1

SPRING

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

182582A1

LEVER

Australia Only

1шт.

20

140311A3

GAS STRUT

1шт.

21

143442A3

SUPPORT

Front

1шт.

22

142567A3

PANEL

Rear, Upper Left Hand

1шт.

22a

223817A2

SUPPORT

Rear, Upper Left Hand

1шт.

23

140514A1

SUPPORT

Upper Left Hand

1шт.

24

142568A2

PANEL

Rear, Upper Left Hand

1шт.

25

142569A3

PANEL

Rear, Lower Left Hand

1шт.

26

187885C1

SEALING STRIP

660 mm (26 in), Cut From 87281C1

2шт.

27

176438A1

STEM

1шт.

28

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

176953A3

PROP

Left Hand Rear

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

33

495-81145

WASHER,13/32" x 1 3/4" x .120"

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

129176A4

SHEET

Left Hand Rear to JJC0174399

1шт.

35

398203A1

SHIELD

Left Hand Rear, Start Serial: JJC0174400

1шт.

36

131431A1

ANGLE BAR

Lower Left Hand, Rear

1шт.

37

183368A2

SUPPORT

Left Hand Rear

1шт.

38

130184A2

BRACKET

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

40

183475A1

COVER

Australia Only

1шт.

42

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

10шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

46

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

45

L105124

LATCH HOOK

1шт.

47

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

48

188103C2

BRACKET

1шт.

49

494307C1

LATCH

1шт.

50

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

51

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

1шт.

52

1319563C1

SUPPORT

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

54

1340345C1

BALL STUD

BALL PIN

2шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
