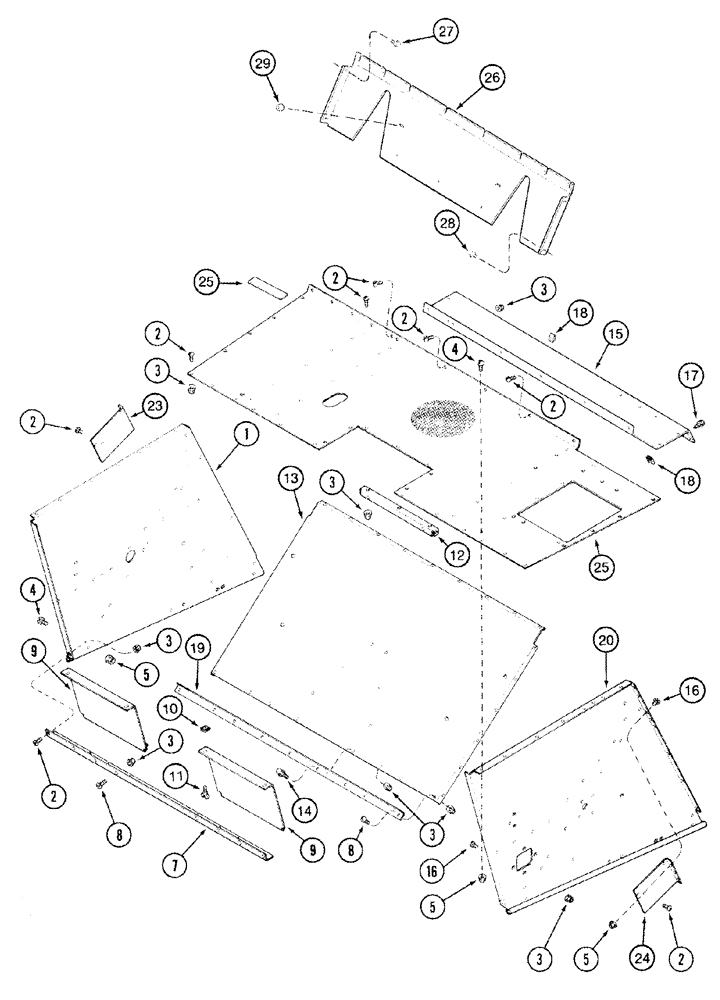

Запчасти Case IH 2344 (09H-04[01]) - SEPARATOR - HOOD, BSN JJC0174449 (12) - CHASSIS

1

189800A2

COVER

Left Hand, Inc. Decal, See Figure(s) 09H-21, Ref 6; 09H-22, Ref 8, Serial Range: -JJC0174399

1шт.

1

189800A3

COVER

Left Hand, Inc. Decal, See Figure(s) 09H-21, Ref 6; 09H-22, Ref 8, Start Serial: JJC0174400

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

7

192309C2

ANGLE

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

6шт.

9

189798A2

COVER

Inc. Decal, See Figure(s) 09H-21, Ref 1; 09H-22, Ref 11

2шт.

10

488837C1

SPRING NUT

5/16

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

186971C1

ANGLE

1шт.

13

1324988C3

DEFLECTOR

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

15

1541957C1

SHEET

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

18

488837C1

SPRING NUT

5/16

11шт.

19

194305C1

ANGLE

1шт.

20

195620A1

SHEET

Right Hand, Serial Range: -JJC0174399

1шт.

20

195620A3

SHEET

Right Hand, Start Serial: JJC0174400

1шт.

23

185104C1

SUPPORT

Left Hand

1шт.

24

185105C1

SUPPORT

Right Hand

1шт.

25

356458A1

SHEET

Replaces 1317744C9

1шт.

25

356458A1

SHEET

Replaces 1317744C9

1шт.

26

195138C5

SUPPORT

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2, Not Illustrated

1шт.

31

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4, Not Illustrated

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6шт.
