Запчасти Case IH 2344 (09H-03) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS

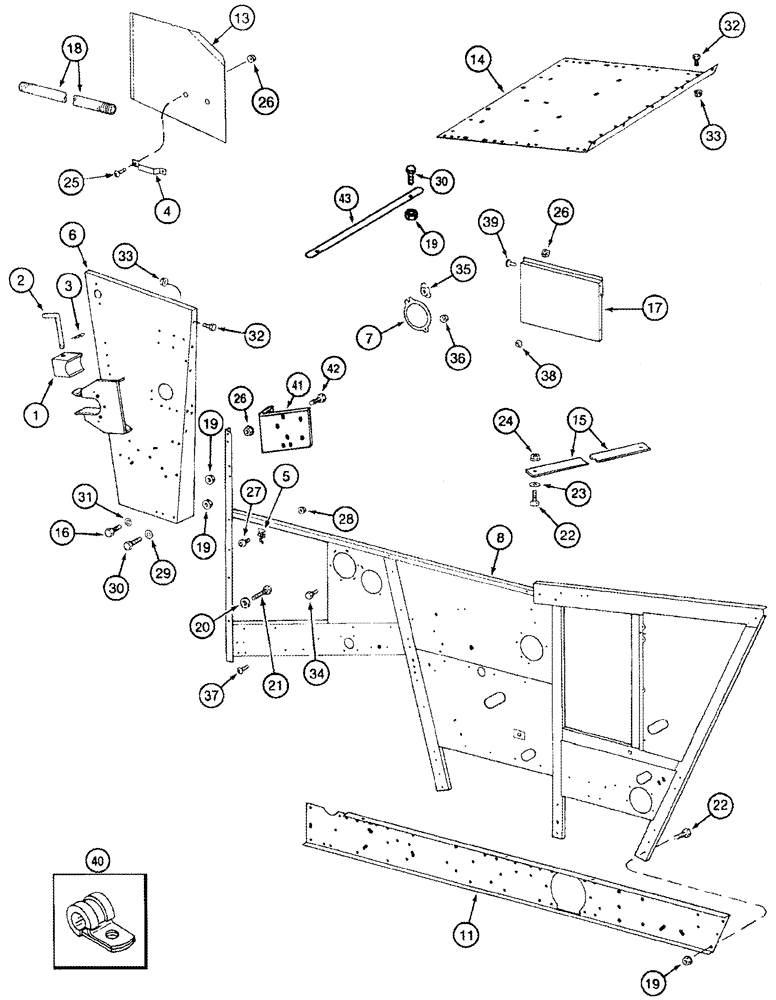

Схема запчастей Case IH 2344 - (09H-03) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS
23
11
17
24
1
4
25
32
2
28
19
7
20
3
42
22
21
22
33
30
26
36
14
19
13
16
27
6
19
41
38
8
33
30
37
18
29
35
34
15
26
5
32
19
31
40
39
26
43

Артикул

Название

Примечание

Количество

1

1989327C2

RETAINER

1шт.

2

192533C2

ROD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

160638C1

HANDLE

1шт.

5

167800C1

CLIP

4шт.

6

115443A4

SUPPORT

Right Hand, Front, Serial Range: -JJC0174449

1шт.

6

115443A5

SUPPORT

Right-Hand, Front, Start Serial: JJC0174450

1шт.

7

188315C1

DOOR

1шт.

8

199615A4

SIDE ASSY.

, Serial Range: -JJC0174399

1шт.

8

394730A1

SIDE ASSY.

Right Hand, Serial Range: JJC0174400-JJC0174449

1шт.

8

409777A1

SIDE ASSY.

Right-Hand, Start Serial: JJC0174450

1шт.

11

1317554C5

SUPPORT

Right Hand, Serial Range: -JJC0174399

1шт.

11

359827A1

SILL

Right Hand, Serial Range: JJC0174400-JJC0174449

1шт.

11

359827A2

SILL

Right-Hand, Start Serial: JJC0174450

1шт.

13

192623C3

DOOR

Right Hand, Front

1шт.

14

1324970C2

PLATE

1шт.

15

196315C2

BAR

, Serial Range: -JJC0174449

1шт.

15

446256A1

BAR

, Start Serial: JJC0174450

1шт.

16

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

13шт.

17

181085C4

DOOR

1шт.

18

1319395C1

CONDUIT

12-1/8, Cut From 1262114C1

1-2шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

17шт.

20

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

3шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

2шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

27

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

28

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

29

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

2шт.

30

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

5шт.

31

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

41/64 x 1-1/4 x 1/8

6шт.

32

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

33

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

34

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

35

126177

WING NUT

1/4

1шт.

36

231-4144

NUT,1/4"-20, GB

1шт.

37

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

1шт.

38

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

40

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

41

220624A1

SUPPORT

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

43

235386A2

LARGE PLATE

PLATE, LARGE

1шт.

44

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Not Illustrated

1шт.

45

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Not Illustrated

1шт.

46

496-21053

WASHER,17/32" x 1 1/16" x .134"

Not Illustrated

1шт.

47

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

Not Illustrated

1шт.

48

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

Not Illustrated

1шт.

49

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

1шт.

50

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8, Not Illustrated

1шт.

Выбрано товаров: 53
