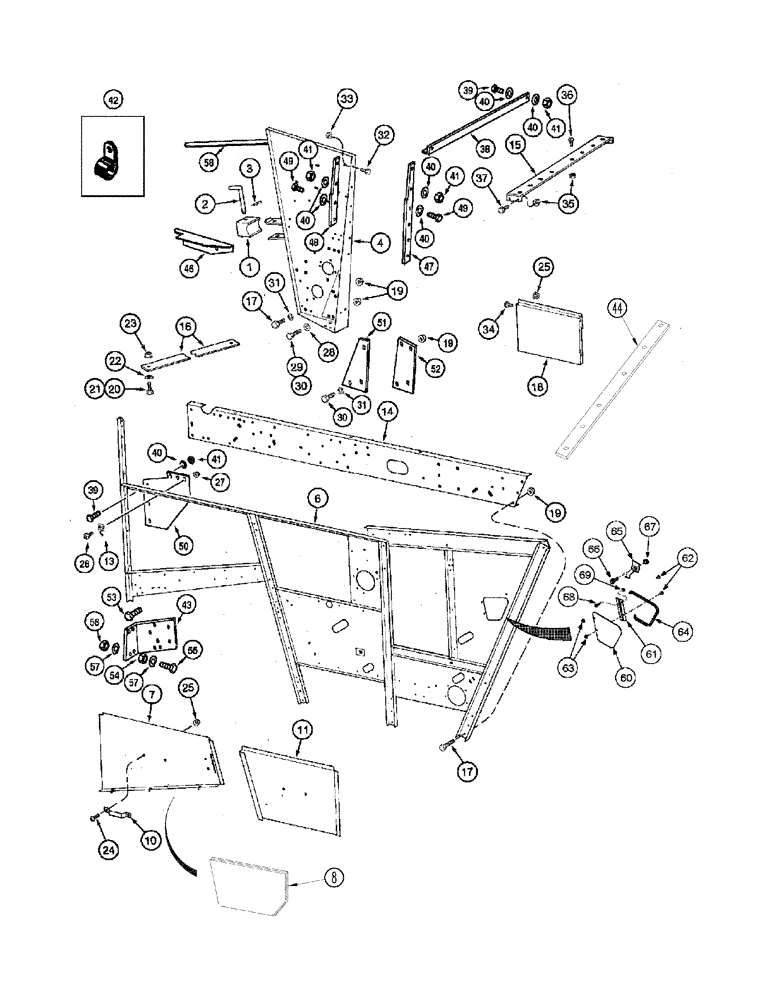

Запчасти Case IH 2344 (09H-02) - SEPARATOR - DOORS - LEFT HAND (12) - CHASSIS

1

1989327C3

RETAINER

1шт.

2

192533C2

ROD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

139619A6

SUPPORT

Left Hand, Front, Inc. Decal, See Figure(s) 09H-21, REF 9, Serial Range: -JJC0174399

1шт.

4

393189A2

POST

Left Hand, Front, Inc. Decal, See Figure(s) 09H-21, REF 9, Serial Range: JJC0174400-JJC0174449

1шт.

4

393189A3

POST

Left-Hand, Front, Start Serial: JJC0174450

1шт.

5

120253C1

CONDUIT

210 mm (8-1/4 in), Cut From 1262114C1, Not Illustrated

1шт.

6

320801A3

SIDE ASSY.

Left Hand, Replaces 1970184C9, Serial Range: -JJC0174399

1шт.

6

393323A1

SIDE ASSY.

Left Hand, Serial Range: JJC0174400-JJC0174449

1шт.

6

409771A3

SIDE ASSY.

Left-Hand, Start Serial: JJC0174450

1шт.

7

192081C1

DOOR

Left Hand, Serial Range: -JJC0174449

1шт.

8

446258A1

DOOR

Left-Hand, Start Serial: JJC0174450

1шт.

10

160638C1

HANDLE

2шт.

11

192940C1

DOOR

Left Hand

1шт.

13

167800C1

CLIP

10шт.

14

1327695C8

SUPPORT

Left Hand, Serial Range: -JJC0174399

1шт.

14

359826A1

SILL

Left Hand, Serial Range: JJC0174400-JJC0174449

1шт.

14

359826A2

SILL

Left-Hand, Start Serial: JJC0174450

1шт.

15

195316C1

SUPPORT ASSY.

1шт.

16

196315C2

BAR

, Serial Range: -JJC0174449

1шт.

16

446256A1

BAR

1740 mm (68-1/2 in), Start Serial: JJC0174450

1шт.

Use with 339826A2

1шт.

17

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

13шт.

18

181085C4

DOOR

1шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

17шт.

20

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

21

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

23

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

3шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

26

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

10шт.

27

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

28

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

4шт.

29

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

30

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

5шт.

31

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

41/64 x 1-1/4 x 1/8

10шт.

32

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

33

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

8шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

35

231-5146

FLANGE NUT,3/8"-16

6шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

38

222134A2

SUPPORT

1шт.

39

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

30шт.

41

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

15шт.

42

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

43

220612A1

SUPPORT

1шт.

44

446246A1

STRAP

reinforcing, Auger Trough, Start Serial: JJC0174450

1шт.

46

234958A1

SUPPORT

Upper, Front

1шт.

47

233327A2

LARGE PLATE

PLATE, LARGE

1шт.

48

235234A2

LARGE PLATE

PLATE, LARGE Left Hand

1шт.

49

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

7шт.

50

233468A1

LARGE PLATE

PLATE, LARGE Left Hand, Corner

1шт.

51

233326A1

LARGE PLATE

PLATE, LARGE Left Hand, Front

1шт.

52

233324A1

LARGE PLATE

PLATE, LARGE Left Hand, Front

1шт.

53

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

53

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

55

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

55

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

55

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

56

231-5146

FLANGE NUT,3/8"-16

2шт.

57

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

58

235386A2

LARGE PLATE

PLATE, LARGE

1шт.

59

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

140 mm (5-1/2 in), Cut From 1338149C1, Not Illustrated

4шт.

387815A1

DOOR

Separator, Inc. 60 - 64, Start Serial: JJC0174400

1шт.

60

383558A1

DOOR

JJC0174400 to

1шт.

61

397586A1

HINGE

JJC0174400 to

1шт.

62

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

63

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

64

383559A1

SEAL

1шт.

65

167800C1

CLIP

1шт.

66

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

67

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

68

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

69

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

426155A1

KIT

Sieve Light / Viewing Door, Inc. 60, 62 - 64, 67 - 69, Also Inc. 1347069C1 (2), See Figure(s) 04-16, 09H-22 (01), )9H-23

1шт.

Used to retrofit machines built Prior to P.I.N. JJC0174359

1шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

12шт.
