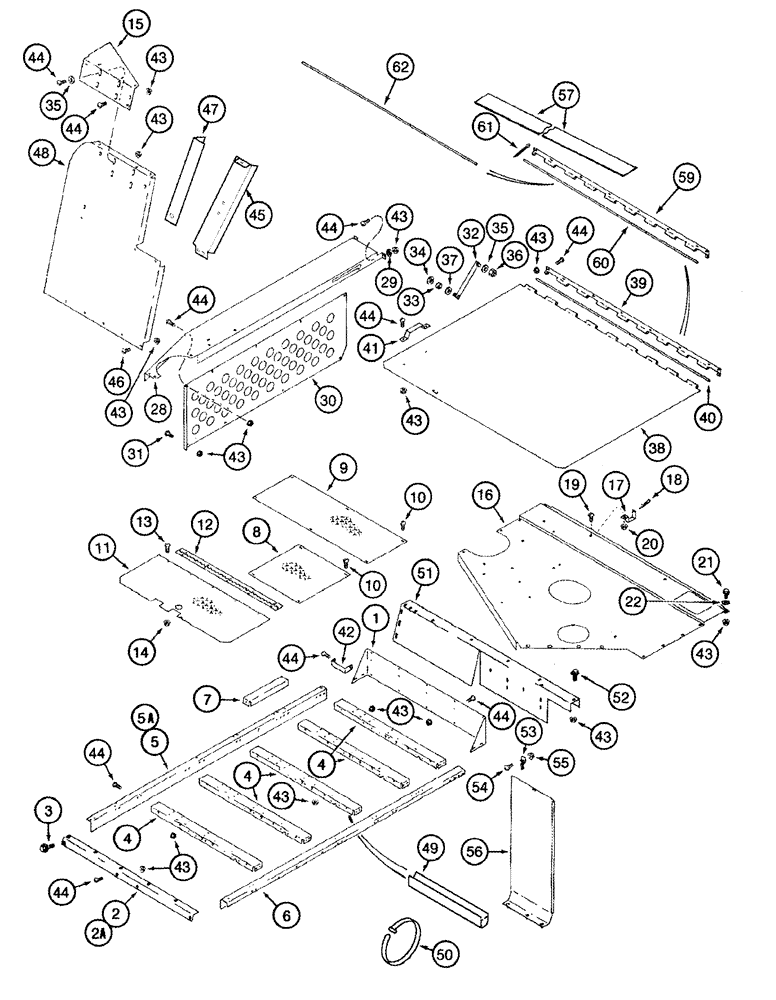

Запчасти Case IH 2344 (09H-01) - SHIELD, ENGINE - DECK, SERVICE (12) - CHASSIS

1

193435C3

SUPPORT

1шт.

2

193146C4

ANGLE

, Serial Range: -JJC0174060

1шт.

2a

304311A1

ANGLE

JJC0174061 to

1шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

4

192959C6

SUPPORT

5шт.

5

143344A1

ANGLE

, Serial Range: -JJC0174060

1шт.

5a

304312A1

ANGLE

, Start Serial: JJC0174061

1шт.

6

192960C7

ANGLE BAR

1шт.

7

1979830C1

SUPPORT

1шт.

8

1979827C2

PLATE

1шт.

9

1979874C1

PLATE

Front

1шт.

10

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2

10шт.

11

1977155C3

DOOR

3шт.

12

186695C1

HINGE

3шт.

13

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

30шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

30шт.

15

1330481C2

SUPPORT

LH Rear, Upper

1шт.

16

291865A1

COVER

Upper Rear, Inc. Decal, See Figure(s) 09H-21, REF 12; 09H-22, REF 10

1шт.

17

303576A2

SUPPORT

Replaces 1979316C3, 303576A1

1шт.

18

480523R1

HAIR PIN COTTER

1шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

9шт.

22

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64

2шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Not Illustrated

4шт.

24

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Not Illustrated

1шт.

25

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Not Illustrated

1шт.

26

PO22778

SPACER,1/4" Pipe x 2"

Not Illustrated

1шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Not Illustrated

1шт.

28

126839A1

SUPPORT

1шт.

29

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

11/32 x 1-1/4 x 1/16

1шт.

30

1302703C2

SHEET ASSY.

1шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

3шт.

32

1302413C1

PROP

1шт.

33

568257R1

SPACER,1/2" Tube x 3/8"

1шт.

34

495-81024

WASHER,17/32" x 1 1/4" x .060"

17/32 x 1-1/4 x 1/16

1шт.

35

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

3шт.

36

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

37

567532R1

WASHER

21/64 x 1/2 x 5/32

1шт.

38

186197C93

TRAP DOOR

1шт.

39

194477C2

HINGE

No Longer Used, Order 304520A1, REF 59, See Figure(s) 09H-01

1шт.

40

194478C1

ROD

No Longer Used, Order 304522A2, REF 60, See Figure(s) 09H-01

1шт.

41

160638C2

HANDLE

Replaces 160638C1

1шт.

42

188419C1

CHANNEL

Upper, Left Hand Rear

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

44

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

45

237715A1

SUPPORT

Rear, Left Hand

1шт.

46

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

47

237716A1

BRACKET

Rear, Left Hand

1шт.

48

1347130C2

SHEET

Left Hand Rear, Inc. Decal, See Figure(s) 09H-21, REF 17

1шт.

49

1327979C1

MOLDING

152 mm (6 in), Cut From 1330108CX

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Replaces 702093C1

1шт.

51

188708A2

SUPPORT

1шт.

52

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

53

167800C1

CLIP

2шт.

54

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

55

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

56

1977286C3

SUPPORT

1шт.

57

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

5шт.

58

143347A1

LATCH

Australia Only, Not Illustrated

1шт.

59

304520A1

HINGE

1шт.

60

304522A2

STEM

No Longer Used, Order 319964A1, REF 62

1шт.

61

432-816

COTTER PIN,1/8" x 1"

1шт.

Used with 304522A2, REF 60

1шт.

62

319964A1

STEM

1шт.
