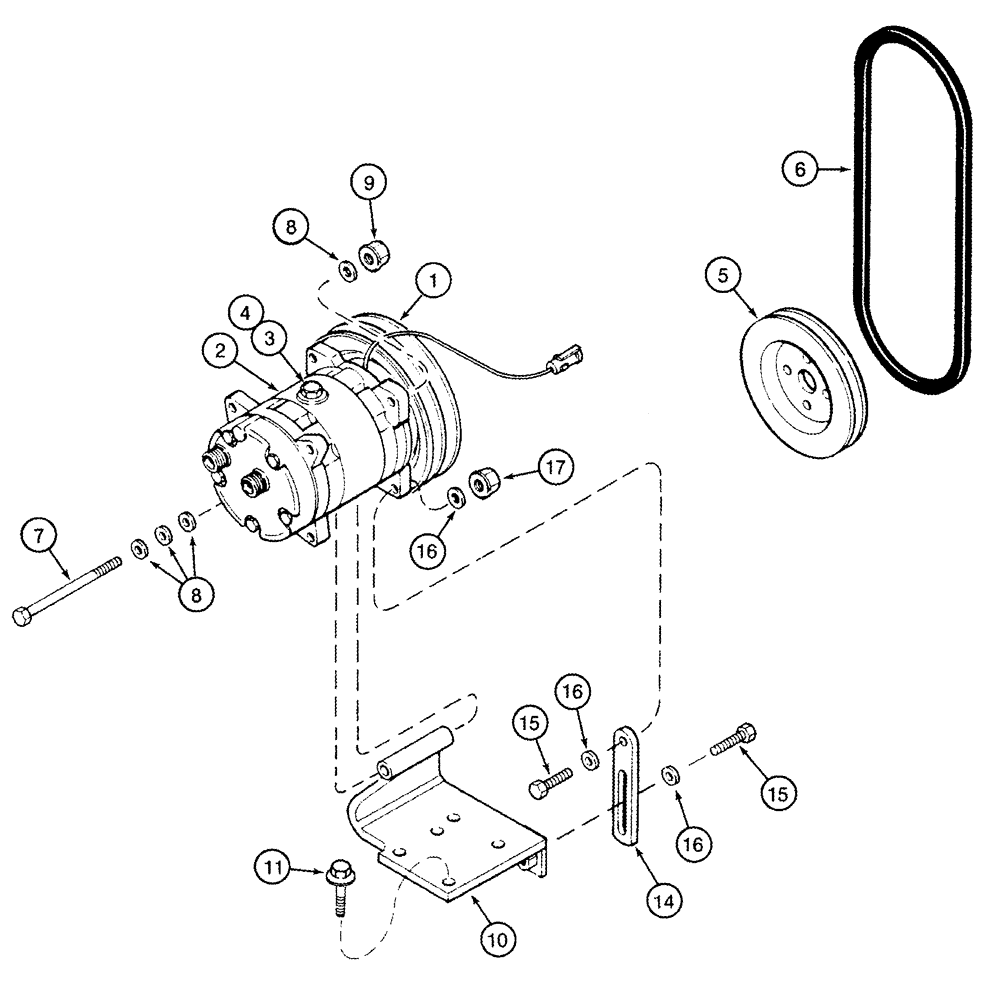

Запчасти Case IH 2344 (09G-25) - AIR CONDITIONING - COMPRESSOR MOUNTING AND DRIVE (10) - CAB & AIR CONDITIONING

1999755C2

COMPRESSOR

Inc. 1 - 4

1шт.

86993462R

REMAN-COMPRESSOR

2344 (1/98-1/02); Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/ HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

135324A1

CLUTCH

1шт.

2

NSS

NOT SOLD SEPARAT

Compressor

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

A184596

PULLEY

Drive

1шт.

6

164550R2

V-BELT,42.50" L

1шт.

7

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

4шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

10

A189290

SUPPORT

1шт.

11

905-10025

BOLT,Hex Flg, M10 x 25mm

4шт.

14

84716C1

SUPPORT

1шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

16

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

3шт.

17

832-41310

NUT,M10 x 1.5, Cl 10

1шт.
